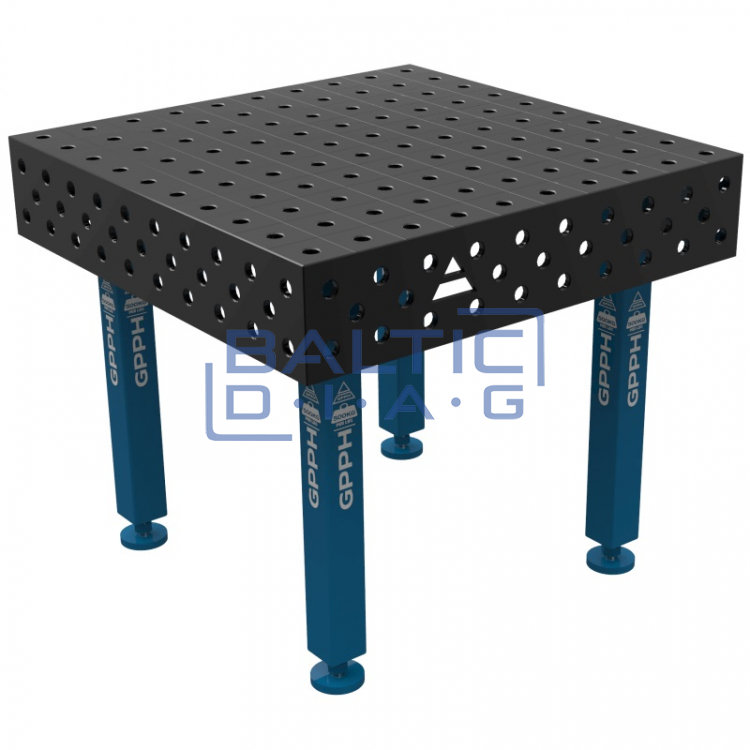

Welding table GPPH 1000x1000

Welding table GPPH 1000x1000

Technical data:

• Dimensions: 1000x1000 cm
• Side plate: 200 mm
• Table weight: 230 kg
• Load: 2000 kg
• Number of legs: 4

Description:

• Thickness: 12 mm
• Table legs are made of profile 80x80 mm
• Load: 500 kg
• Stable and massive construction
• Highest quality
• Excellent table smoothness: (+/- 0.5 mm)
• Made of: S355J2 + N
• Ø16 or ø28 system holes in the grid 100x100
• Three mesh holes on 4 sides
• Broken and milled holes to make the tool easy to assemble
• Table height adjustment with standard legs approx. 880-930 mm
• Engraved scale in the grid 100x100 mm
• Possibility to use stainless steel lids
• The tables can be freely adjusted to expand the work surface
• Manufactured according to the standard: ISO 2768-1
• Code: TWT.PLUS.100100
