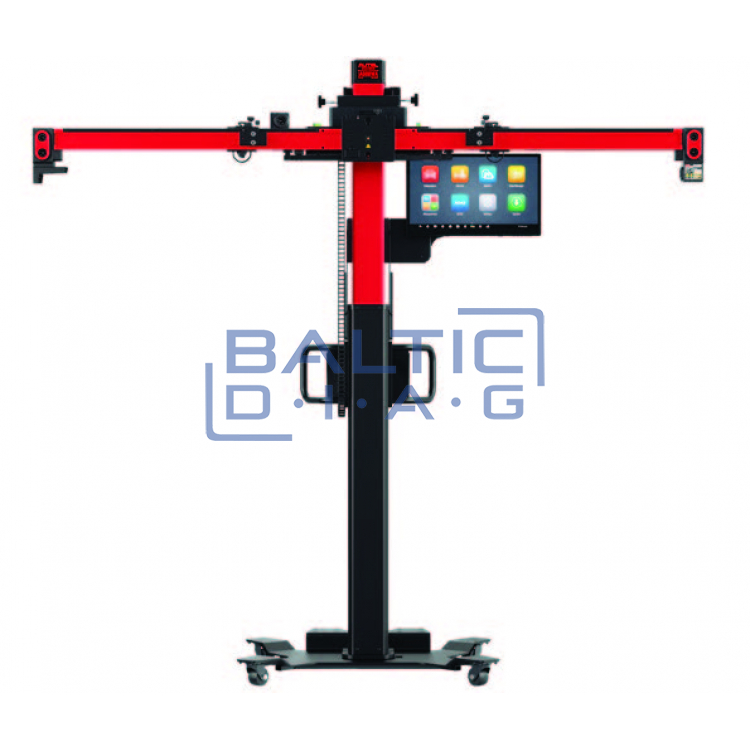

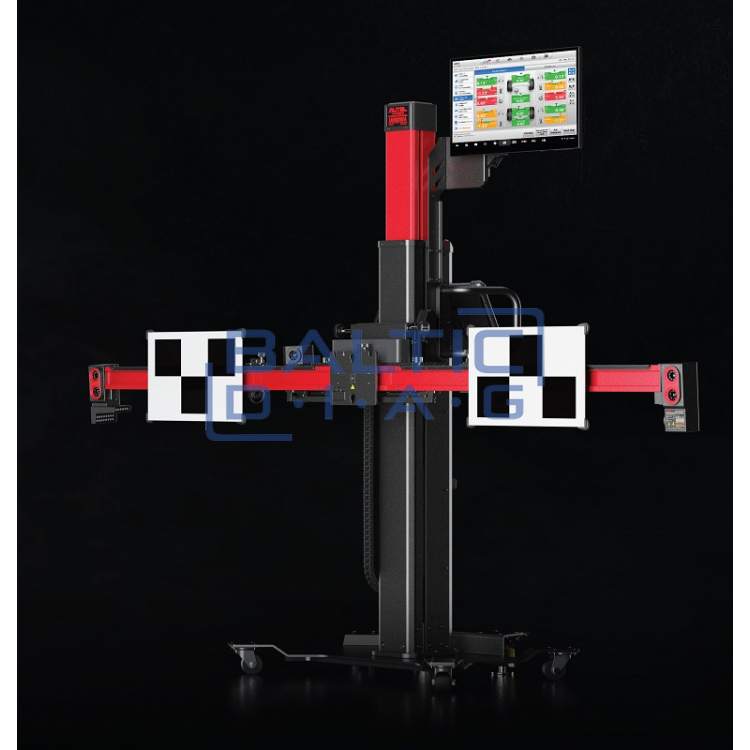

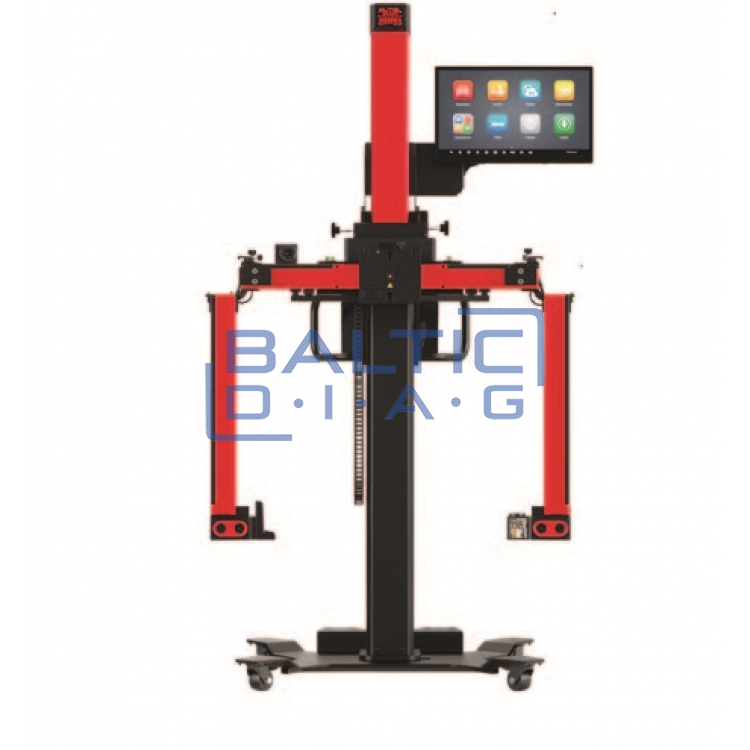

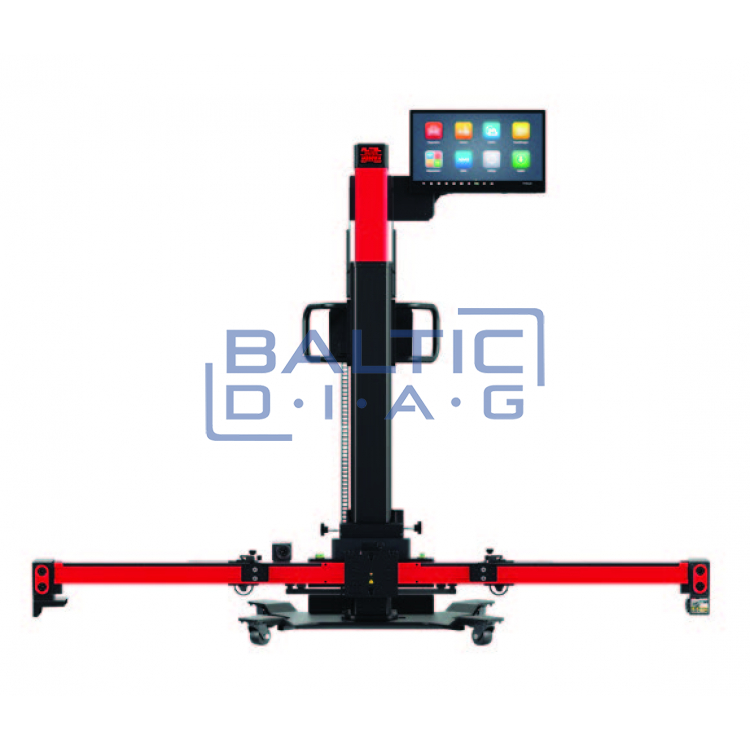

Wheel alignment and ADAS calibration stand Autel MaxiSys IA900WA Basic kit with tire holders

Wheel alignment and ADAS calibration stand Autel MaxiSys IA900WA Basic kit with tire holders

Manufacturer Autel (Italy), warranty 3 years

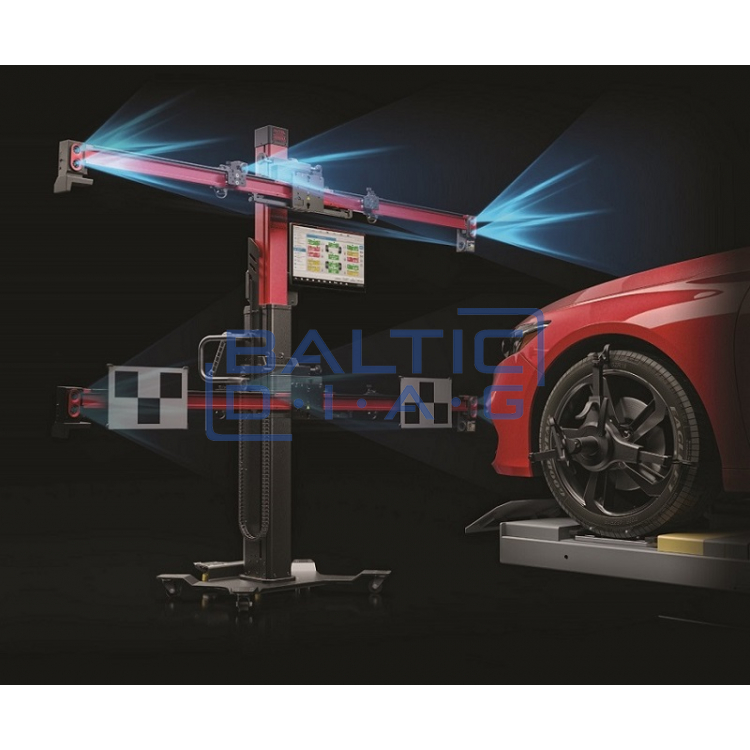

The Autel IA900WA stand can perform both wheel alignment functions and ADAS calibrations.

Features:

• 24 inch touchscreen
• Autel MaxiSys Ultra device is required for use
• MaxiSys Ultra tablet holder with controls included
• MaxiSYS interface for wheel alignment
• Autonomous bench frame movement
• Precise optical measurement with 6 high-resolution cameras
• Self-calibrating cameras, extremely accurate setting
• The cameras automatically track the height of the vehicle when lifting the car

For IA900W wheel alignment:

• Tires, brakes, suspension, steering angle and other parameters are checked. Marked service recommendations, sample photos and observations.
• Automatic checking of alignment angles.
• Illustrated assembly instructions, direct readings, indicated tools and adjustment locations are displayed on one screen.

For IA900A ADAS calibration:

• The fastest optical aiming frame that will show everything in less than a minute.
• Step by step all steps for ADAS calibration.
• Just place the requirements in front of the car and press the scan button and everything will be done automatically.

Advantages of the stand:

• Dual screen operation
• The calibration frame folds
• New locking mechanism for the folding crossbar
• Self-calibrating camera
• Integrated cable management
• Consolidated power supply

The equipment can only work with the following Autel devices (these devices are not included in the price)

• Autel MasiSys MS909
• Autel MasiSys MS919
• Autel MasiSys Ultra

The set includes:

• IA900WA kit
• 24" inch touchscreen monitor
• Distance targets
• Tire clamps - 4 pcs.
• Steering wheel, brake locking, wedge blocks
• ACC calibration mirror
• LDW target board for Volkswagen Group cars
