Wheel alignment kit

Wheel Alignment Kit, Launch X-861 3D Wheel Alignment Bench + Four Column Lift Adapted for Wheel Alignment 5 Tons BD-5AL

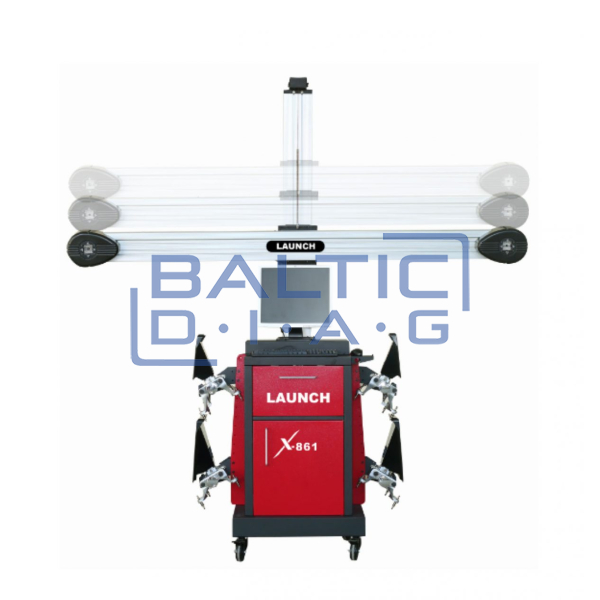

Launch X-861 3D wheel alignment stand

Launch, Germany; Warranty: 2 years

Description:

The X-861 3D wheel alignment stand is a new generation device from LAUNCH. It is a highly accurate 3D measuring bench that makes it easy to start wheel alignment measurements based on easily presented data. Various car wheel angles can be measured, including front and rear wheel camber, front and rear wheel camber, caster angle, center axle lift, axle toe, etc. All parameters are set with extremely high accuracy. With the X-861 alignment stand, work starts easily, thanks to a clear sequence of operations. It is one of the fastest 3D alignment stands, because with extremely fast moving cameras, the system provides in an extremely short time where alignment work needs to be done. The Launch X-861 3D assembly stand for the European market uses our regional version. The assembly stand comes with a complete car database, a printer and of course a computer. It is a good choice for professional wheel alignment services. All car wheel angles are measured and evaluated.

Measurement parameters:

• Alignment: ± 20°
• Partial alignment: ± 20°
• boiling: ± 12°
• Caster: ± 25°
• Axial displacement of the wheels: ± 25°
• Flinch Angle: ± 10°
• Thrust Angle: ± 10°

Technical data:

• Input voltage: 220V AC (10A)
• Input frequency: 50～60Hz
• Max. power consumption: 0.5 kW

Technical characteristics:

• 3D measurement technology, so the measurement is more accurate and stable
• Cameras automatically detect targets
• A system of high-speed cameras is installed
• Smart measurement with fully automatic tracking and movement based on lift height
• No need to calibrate when put into use
• Informational texts describe work operations and help to understand what is done and how
• Convenient software management and easy-to-use functions
• User friendly software interface

Available languages:

• English, Spanish, Russian, Polish, German, French, Italian, Portuguese, Japanese, Korean, Chinese.

Complete set:

• Side beam targets
• Column and height-adjustable beam
• Cabinet
• A set of clamps and targets
• A computer
• Printer
• Rotating plates 2 pcs.
• Brake caliper
• Steering lock

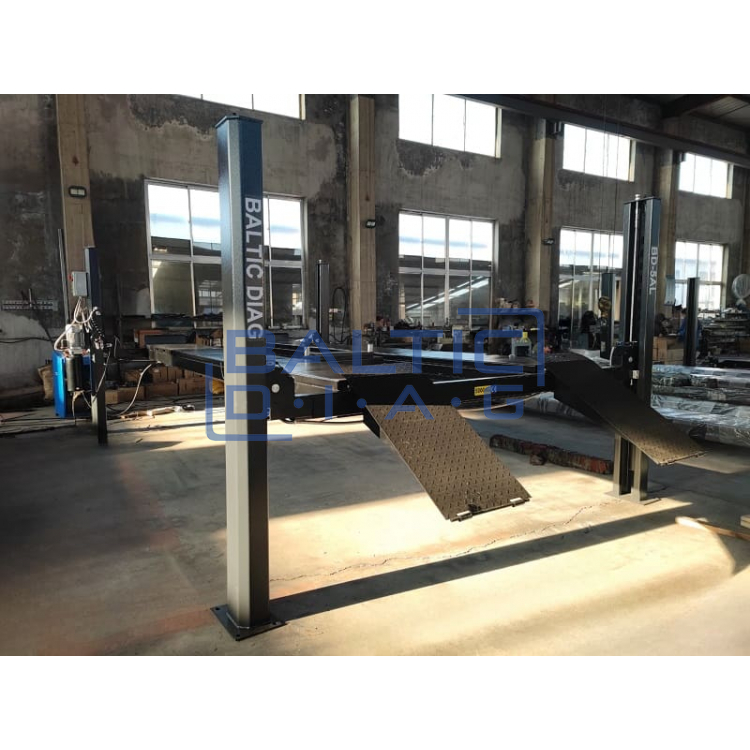

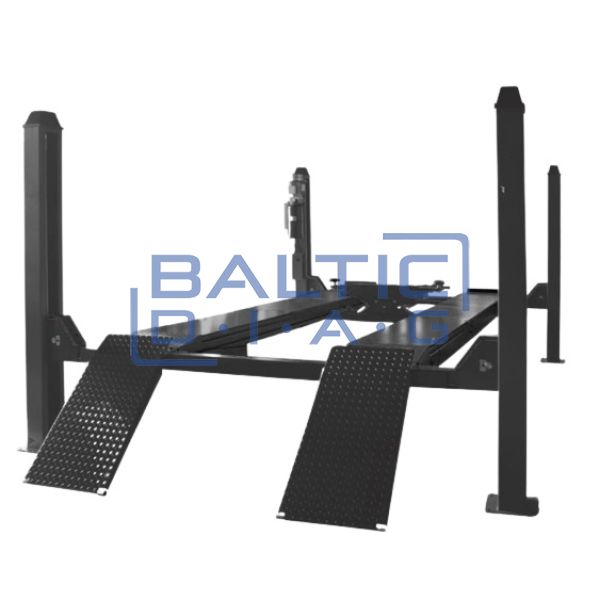

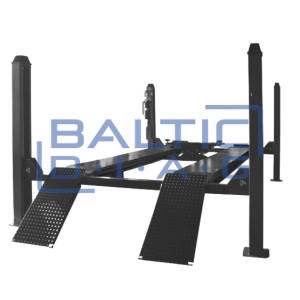

The four-column lifter is adapted for wheel alignment 5 tons BD-5AL

Description:

• Mechanical locking mechanism

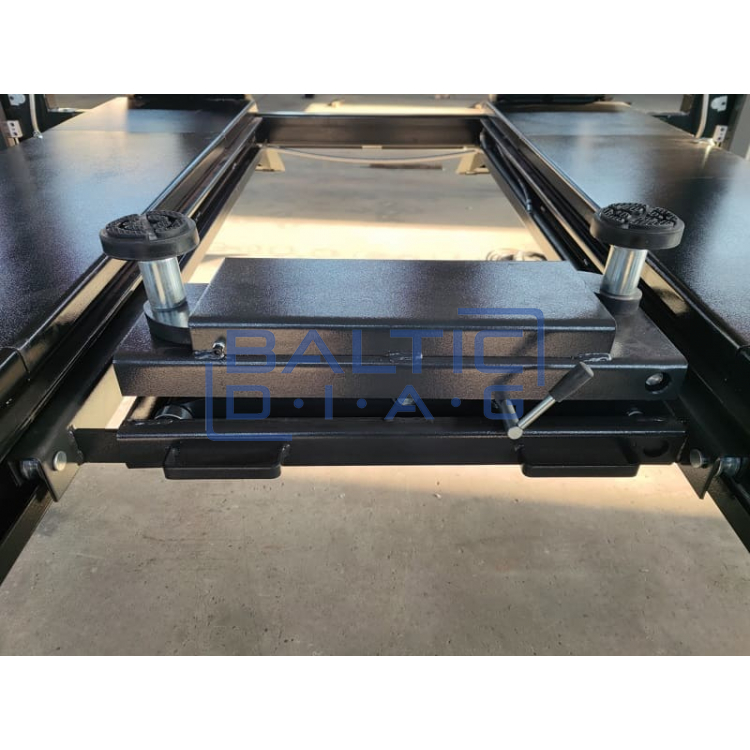

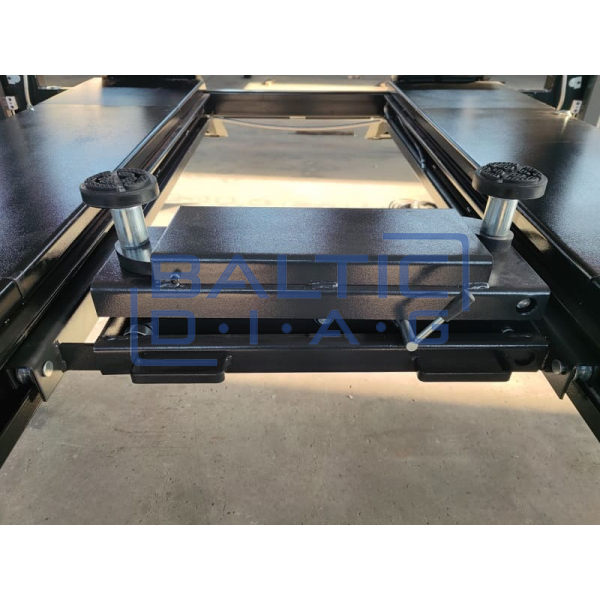

• Complete with 2.5 ton electro-hydraulic axle lift
• The strong steel structure ensures the stability of the lift
• Integrated rear sliding plates and cutouts for front plates
• The crossbars are made with easy access and removal, thus facilitating the maintenance process

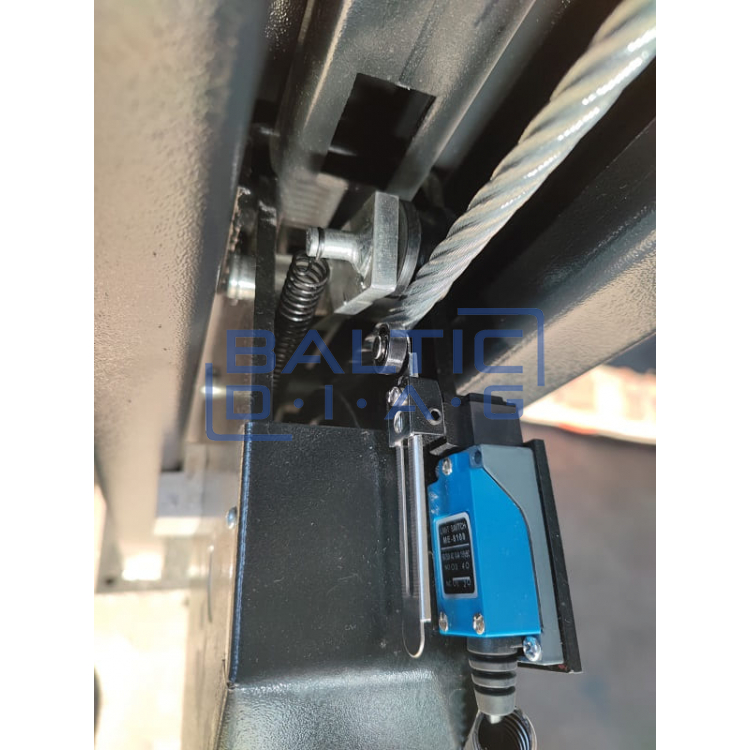

• Ropes with emergency locking in case of breakage
• Aluminum motor construction ensures good heat dissipation and long service life

Technical parameters:

• Carrying capacity: 5000 kg
• Lifting height: 1800 mm
• Minimum height: 240 mm
• Lifting time: 40 - 50s
• Power supply: 400V / three-phase / 50Hz
• Engine power: 2.2 kW
• Total length: 6235 mm (with ramps)
• Total width: 3363 mm
• Platform length: 5000 mm
• Platform width: 550 mm
• Distance between platforms: 880 - 1200 mm
• Weight: 1600 kg
• Color: RAL 7021 (Anthracite)

Complete set:

• Access ramps
• Sliding plates
• Axle jack
• Lifting feet (for axle lifter)
• Mounting anchors
