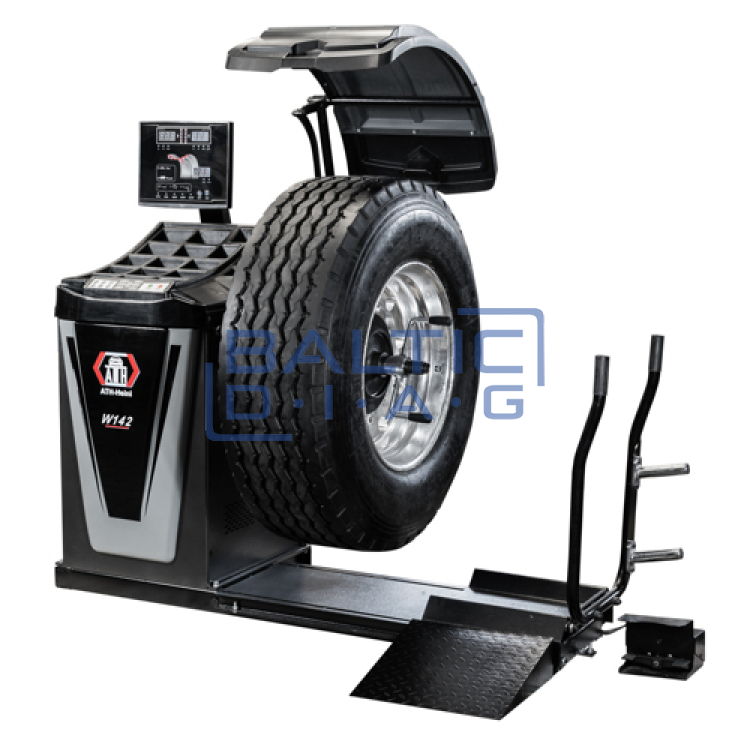

Wheel balancing machine ATH W142

5,384.50 €

Prices shown include tax

Damage-resistant construction that is cut from a high-precision laser, and precise welding of the frame was performed by robots.
Automatic distance and rim diameter measurement, manual rim width input (2D function).
Ergonomically arranged front panel, large counterweight holder
Adjustable: weight position indicator with LED and laser (LPS)
Precise work is controlled by a microprocessor
Wide range of applications: automatic movement with pneumatic brakes and 11 balancing program options (static / dynamic / light alloy wheels in truck and car mode)
The motor works with a pneumatic wheel lift, the weight is easily attached using a measuring ruler or laser.
Wheel protection with automatic start-stop function
Scope of delivery: Centering cones between supports 45-290 mm, rim width gauge, nut for passenger cars, nut for trucks, calibration weights 100 and 200 g, weight pliers, alloy wheel clamping cap, shaft spring
Optional: 3/4/5 point universal centering flange (Art. No .: RSF0009) for standard truck rims
Great wheel balancer for trucks, buses, commercial vans and car wheels

Supply voltage: 400 V / 50 Hz
Power: 3/400 V / 50 Hz
Weight: 350 kg
LCD screen
Entering wheelbase: automatically
Enter the width of the wheels: automatically
Wheel diameter is entered: automatically
Rim width: 5-20 "
Rim diameter: 12 "-24"
Measurement tolerance: +/- 1.0 g (for light transport) / +/- 10.0 g (for heavy transport)
Max. wheel diameter: 1200 mm
Wheel weight max .: 160 kg
Shaft diameter: 40 mm
