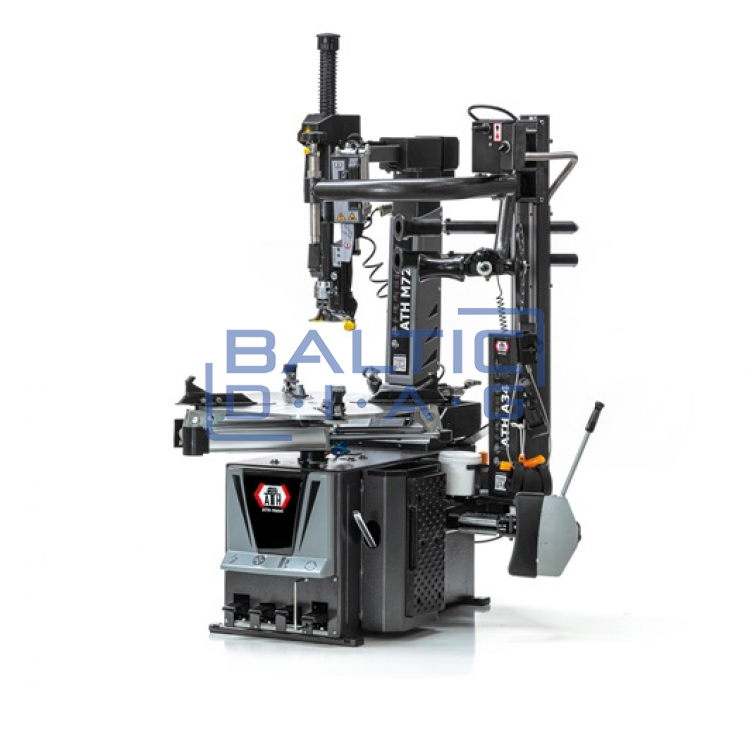

Wheel mounting machine ATH M72 + A34 Plus WDK

Wheel mounting machine ATH M72 + A34 Plus WDK

Country of origin: ATH-Heinl (Germany); Warranty 3 years

• Control of wheel mounting machines with ergonomically arranged pedals
• Self-concentrating 4 clamping system with two double-acting aluminum clamping cylinders; external clamping range up to 26 ", 3 times faster adjustment
• Side clips with double-acting aluminum cylinder and jamming system

Technical data:

• Power: 0.75 kW / 0.90 kW
• Supply voltage: 3/400 V / 50 Hz
• Internal clamping limits 9 "- 26"
• External clamping limits 11 "- 30"
• Pressing stroke 83 - 350 mm
• Pressing force: 2500 kg
• Working pressure: 10 bar
• Rim width: 4-13 "
• Noise level: 70 dB (A)
• Mounting table rotation speed: 6/12 RPM
• Max. Wheel diameter 1050 mm
