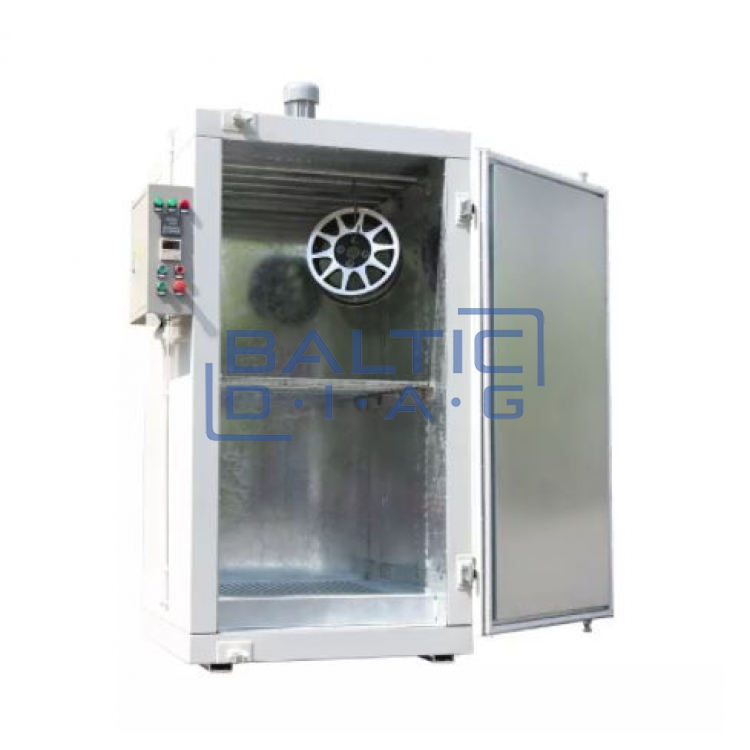

Wheel powder coating furnace features

Wheel powder coating furnace features

• The control allows you to set the exact temperature and time, and also shows the actual oven temperature.
• The 0.55 kW circulating fan ensures excellent heating uniformity for constant and high-quality curing results.
• The 110 V or 220 V standard voltage can be selected according to customer needs.
• High-density stone wool insulation with a 100 mm thick intermediate layer maintains a balanced temperature inside the oven.
• With 2 shelves and 5 rails in one shelf, there is plenty of space to hang covered work parts.

Technical data:

• Power supply: electric / 6kw （1.5 kw heating pipe x 4 pcs）
• Voltage / frequency: 110 V / 220 V (50-60 Hz)
• Warm-up time: 15-30 min. (180 ° C)
• Temperature stability: <± 3-5 ° C
• Max. Temperature: 250 ° C
• Ventilation efficiency: 805-1677 m3 / h
• Fan power: 0.55kw
• Circulation / air flow: vertically, variable holes in the walls
• Dimensions of working size: width 1,000 mm, height 1600 mm, depth 845 mm
