Autel MaxiDAS DS808 Kit

Why you should buy AUTEL equipment from us:

• We are the ONLY official representatives of AUTEL in Lithuania.
• Only the ORIGINAL devices we sell have Russian and English languages at the same time.
• Only original diagnostic equipment sold by us has the most extensive DATA BASE.
• Only the SOFTWARE of the original diagnostic devices we sell is adapted for the European region.
• Our customers receive full WARRANTY and POST-GUARANTEE service of the highest level.
• In case of device failure, our customers are PROVIDED with replacement devices if the repair takes longer than expected.
• The FASTEST delivery of original AUTEL devices in Lithuania, we store MORE THAN 95% of the goods in Lithuania.
• Before buying, WE LET you TRY the original AUTEL device.
• Only from us you can purchase the professional HaynesPRO database from 150Eur/year.

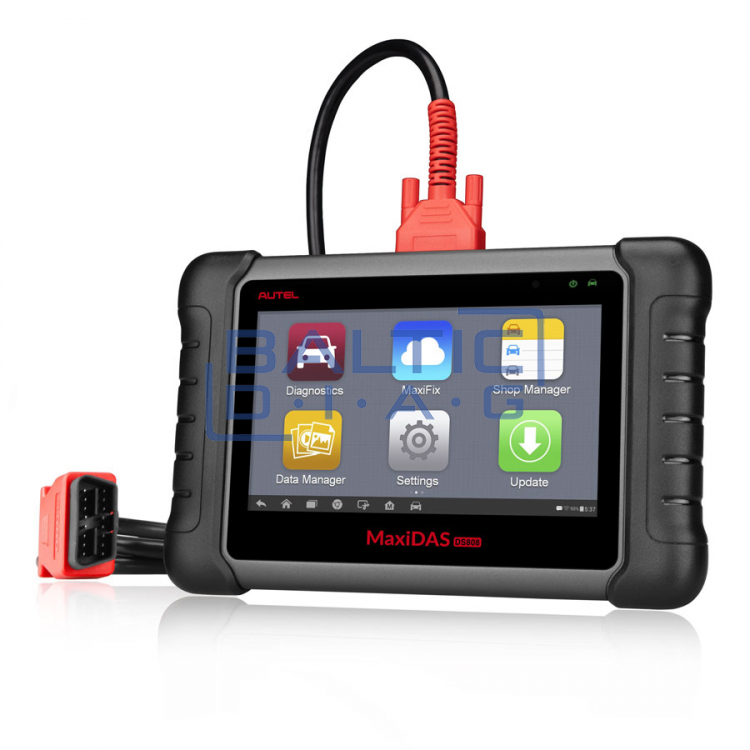

Universal diagnostic equipment Autel MaxiDAS DS808 Kit

Warranty - 2 years.

Free updates - 2 years.

AUTEL Diagnostika - Android operating system-based MaxiDAS DS808 diagnostic equipment is characterized by extensive OE-level diagnostic support. Thanks to its fast quad-core processor, the DS808 can offer the highest level of convenience and simplicity for your diagnostic and analysis tasks. Intuitive user interface and 7-inch 1024 x 600 resolution LCD touch screen make using the device extremely easy.

Main features:

• A wide range of cars, including more than 80 US, Asian and European car manufacturers
• Exclusive OE-level system support for all electrical systems
• Full functionality: code scan, live data, active test, ECU information, adaptation, customization, etc.
• Smart AutoVIN technology to identify cars quickly and easily
• Automatic system and software updates with push notifications over Wi-Fi
• Fast remote assistance

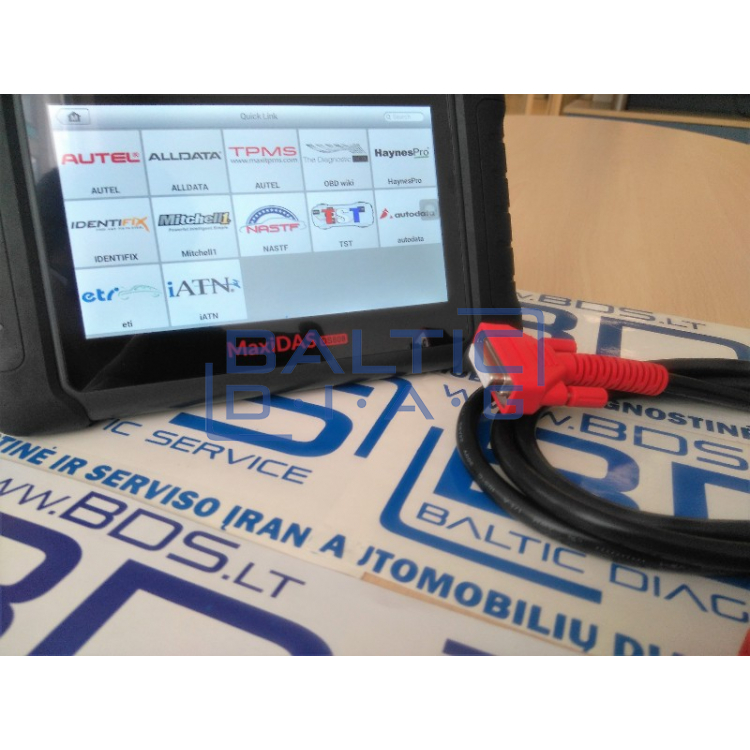

• The MaxiFix online community provides a comprehensive database of diagnostic and repair advice
• A convenient data processing system for organizing and viewing data quickly and accurately

Technical parameters:

• Recommended for internal use
• Operating system: Android 4.4.4
• Processor: Cortex-A9 processor (1.5 GHz)
• Memory: 32 GB
• Screen: 7-inch LCD capacitive touchscreen, 1024 x 600 resolution

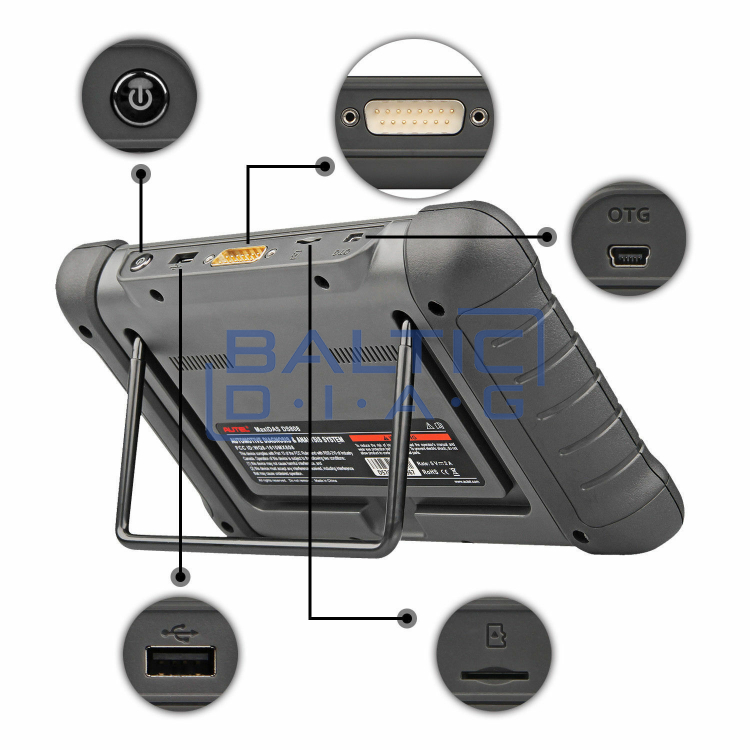

• Connections: Mini USB 2.0; USB 2.0; Wi-Fi; Micro SD card (up to 32 GB)
• Sensors: background light sensor
• Audio input/output: Input - none; output: beep
• Power and battery: 3.7 V / 3200 mAh lithium polymer battery, charged via 5 V DC power supply
• Working time: 4.5 hours of work
• Charging current: 5 V / 1.5 A
• Power consumption: 500 mA (LCD on with base brightness, Wi-Fi on) at 3.7 V
• Operating temperature: -10 to 60°C
• Storage temperature: -20 to 70°C
• Operating humidity: 5 - 95%
• Dimensions: 237.8 x 148.6 x 35.5 mm
• Weight: 788 g
• Supported automotive protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Apart from basic OBD diagnostic functions (fault scan and erase, real-time data, active testing), Maxidas DS808 also supports special functions such as:

• TPMS programming,
• Oil change reset,
• EPB service,
• ABS module is automatically discharged,
• SAS calibration,
• DPF register,
• Shaft position sensor reading,
• Built-in Smart AutoVIN car scan

Interaction with the user

• Working with Maxidas DS808 is easy and convenient. The 7-inch touch LCD screen has light sensors and can set the light automatically. 1024 x 600 ensures clear and high image quality.

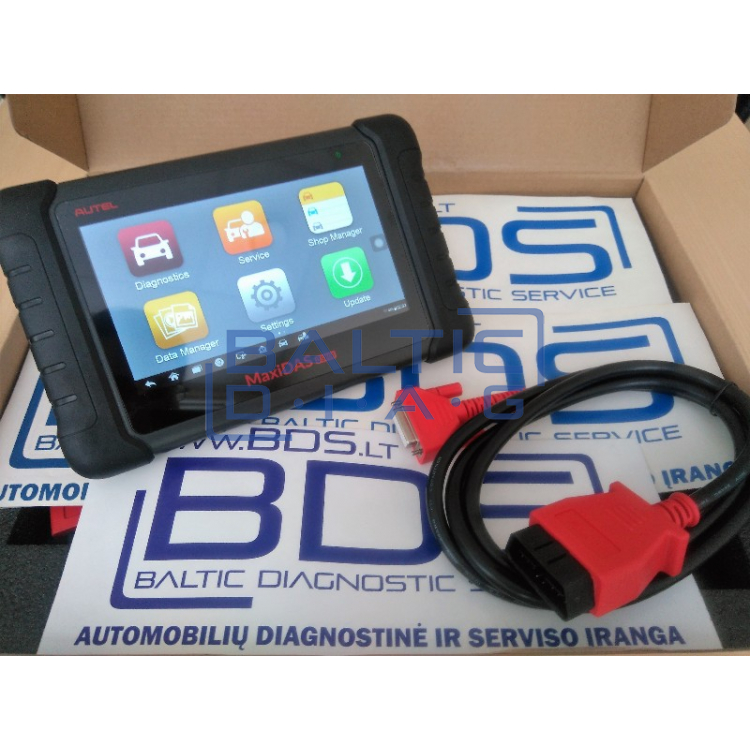

• Also, the device has an intuitive interface, which makes it particularly easy to use the functions, diagnostic functions are available instantly. This can be done in two ways:
• You can use the Auto Scan function, which automatically scans OBD systems. The second is the selection of the control unit. This method displays all diagnostic options in a single pop-up window from which you can select the desired parameters.

Performance

This professional diagnostic device supports a wide range of cars. You can use it to scan more than 80 US, EU and Asian cars compatible with OBD2. These are mostly models from 1996 to present.

Autel Maxidas DS808 Car List:

1. Europe: AUDI, BENZ, BMW, DACIA, EU FORD, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO , VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE.

2. USA: GM, CHRYSLER, FORD

3. Asia: SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HOLDEN, HONDA, ACCURA, MAZDA.

Supported protocols:

ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

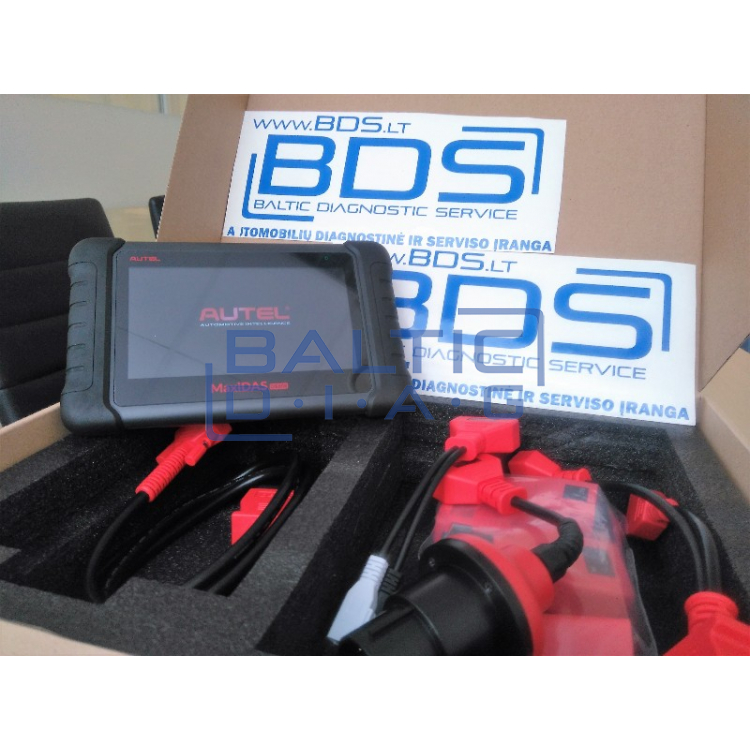

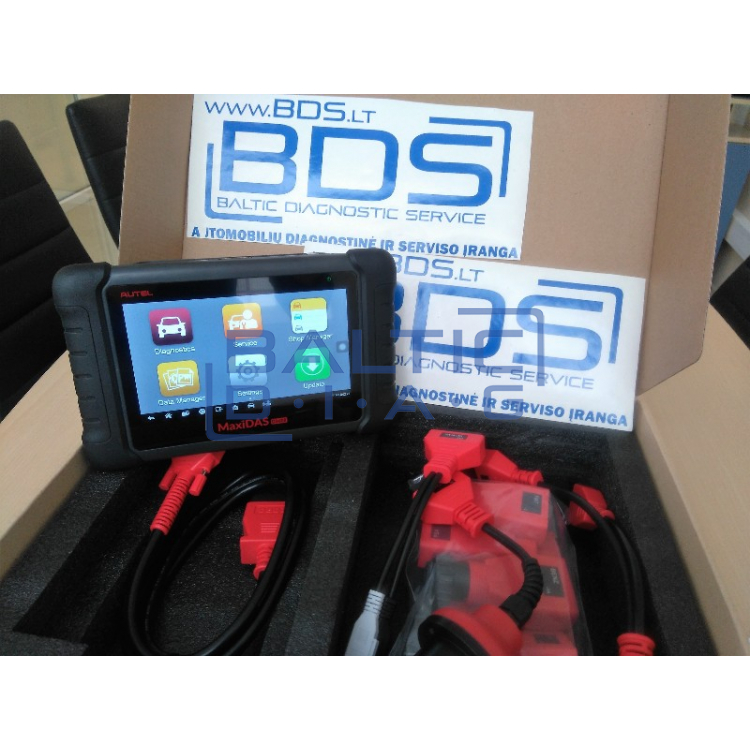

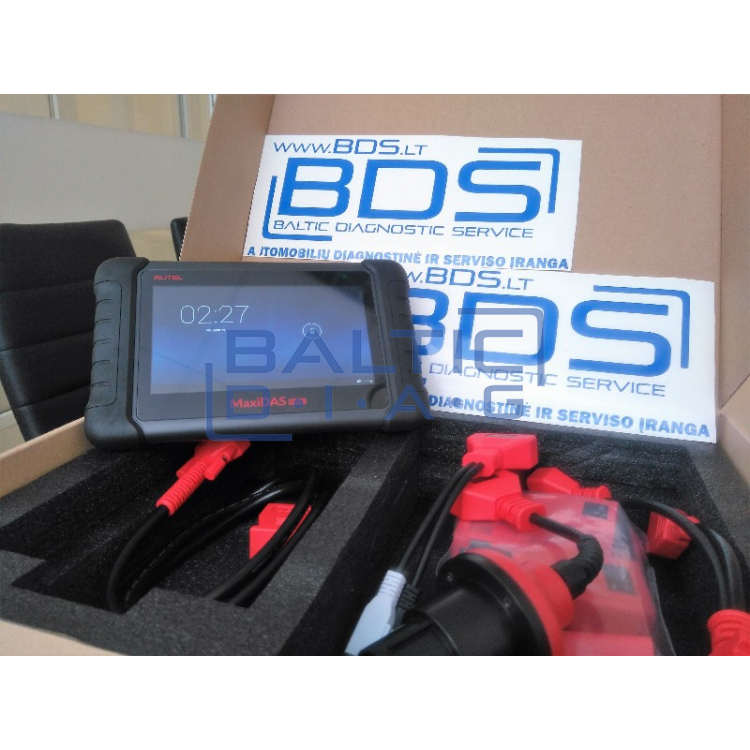

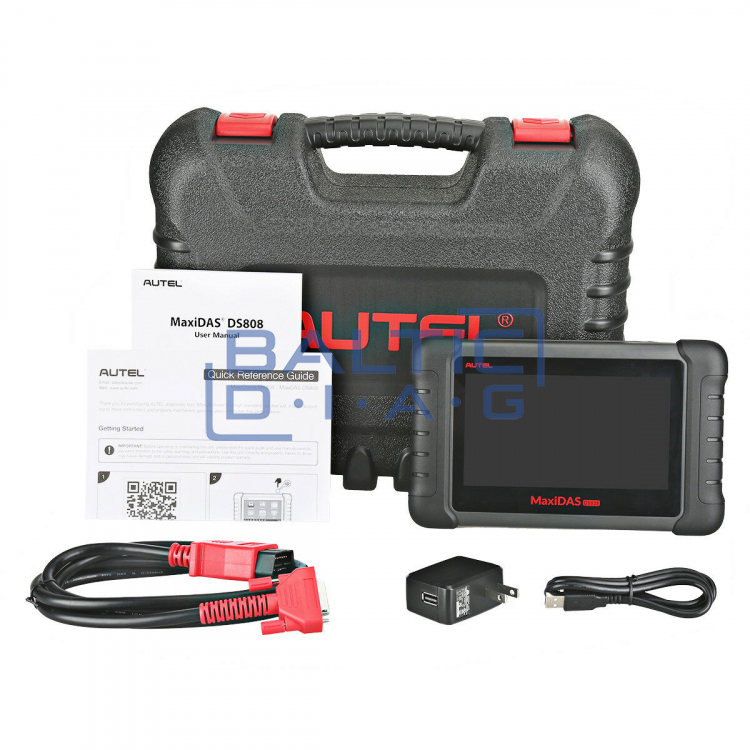

Packaging:

• DS808 tablet
• Power adapter
• manual
• Quick start guide

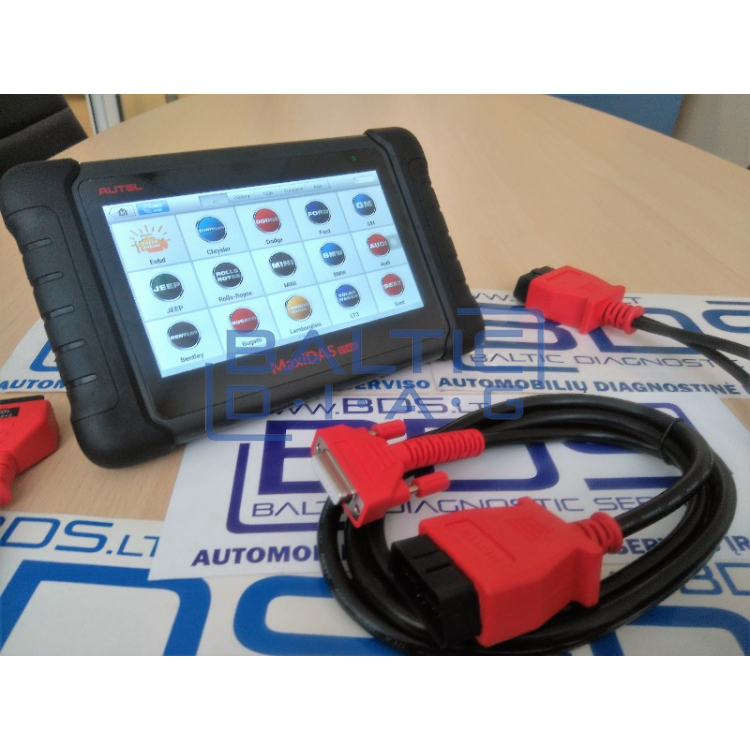

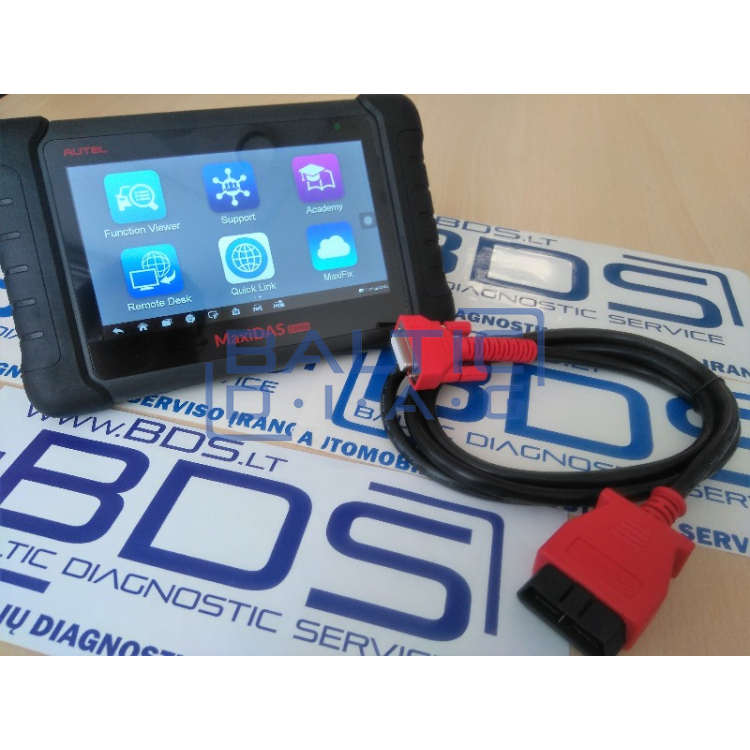

• Main cable
• Mini USB cable

Support:

Extremely extensive and elaborate technical service for DS808. This device is connected to the MaxiFix cloud, which is an online space with a wide variety of advice and answers to your questions. If you cannot find an answer to your serious questions, you can always contact Autel remotely and ask questions directly.
