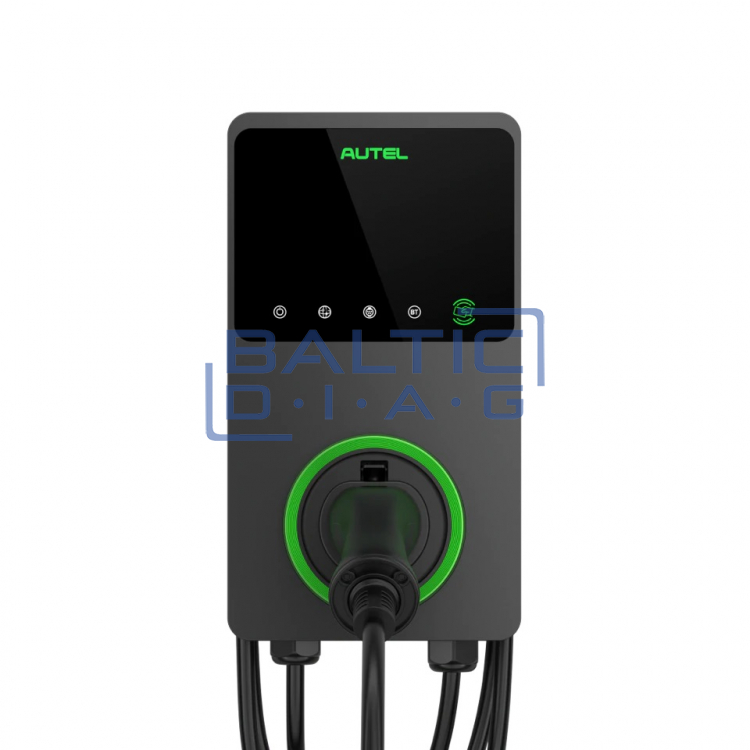

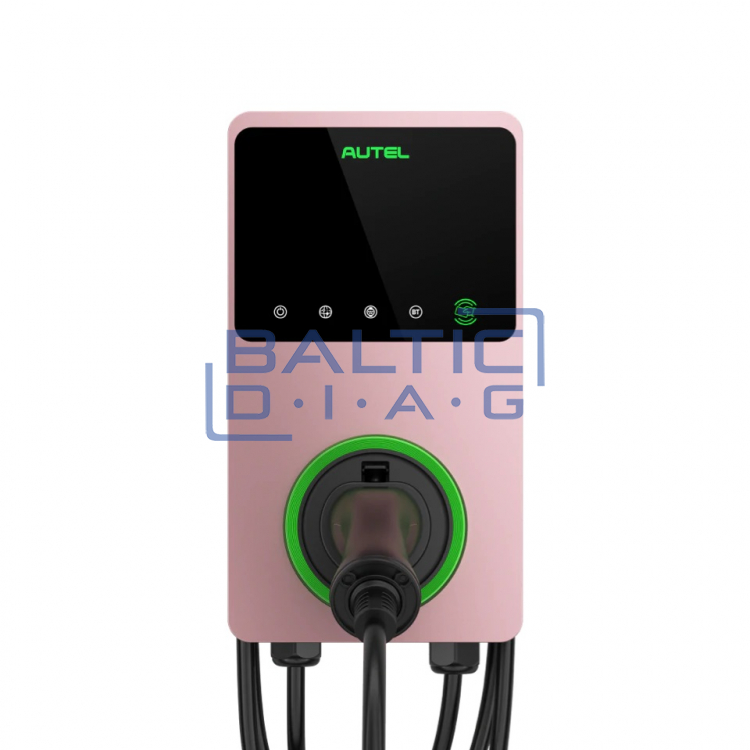

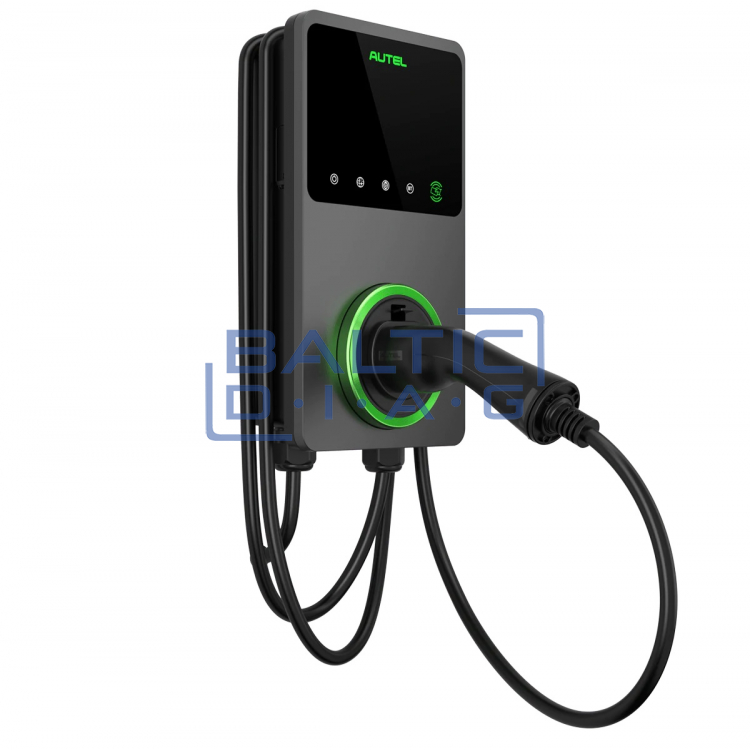

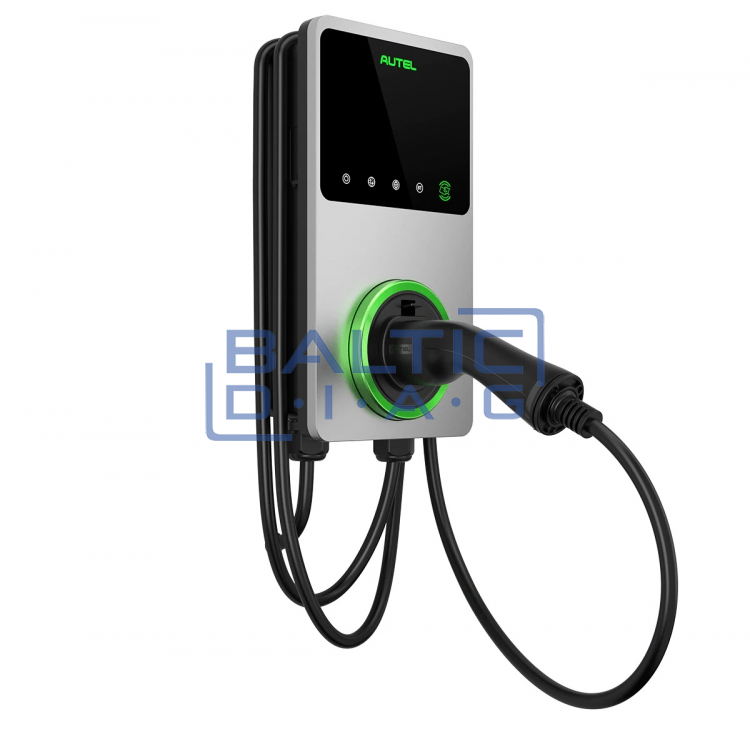

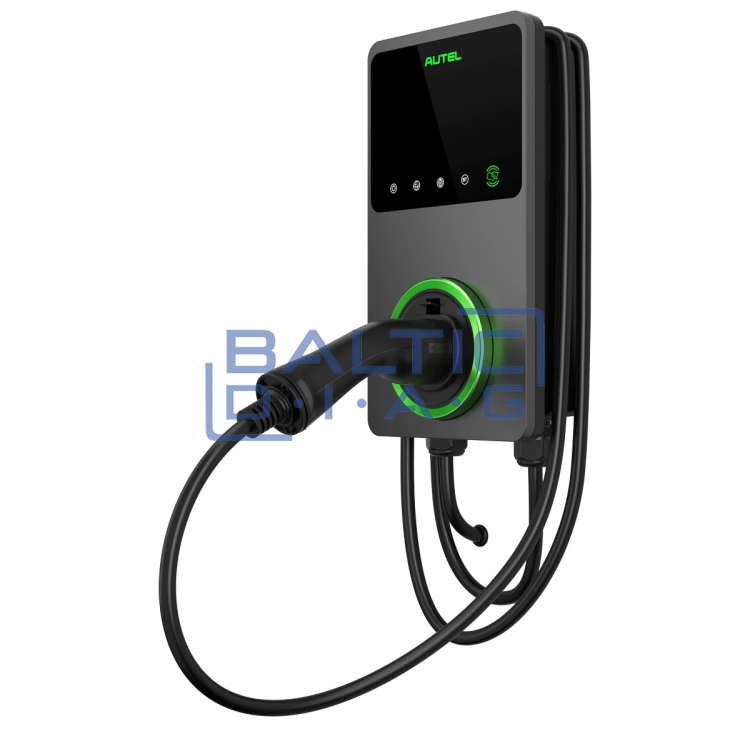

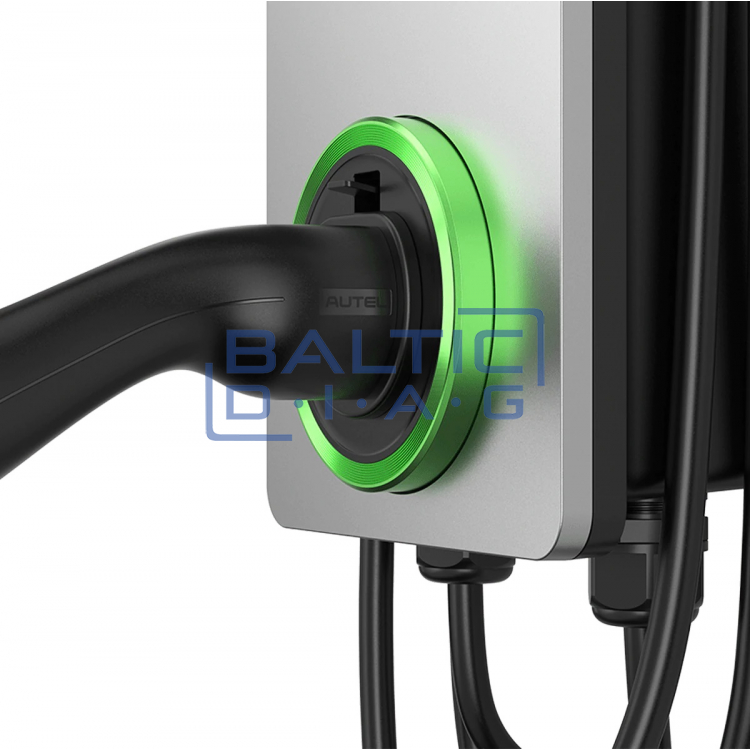

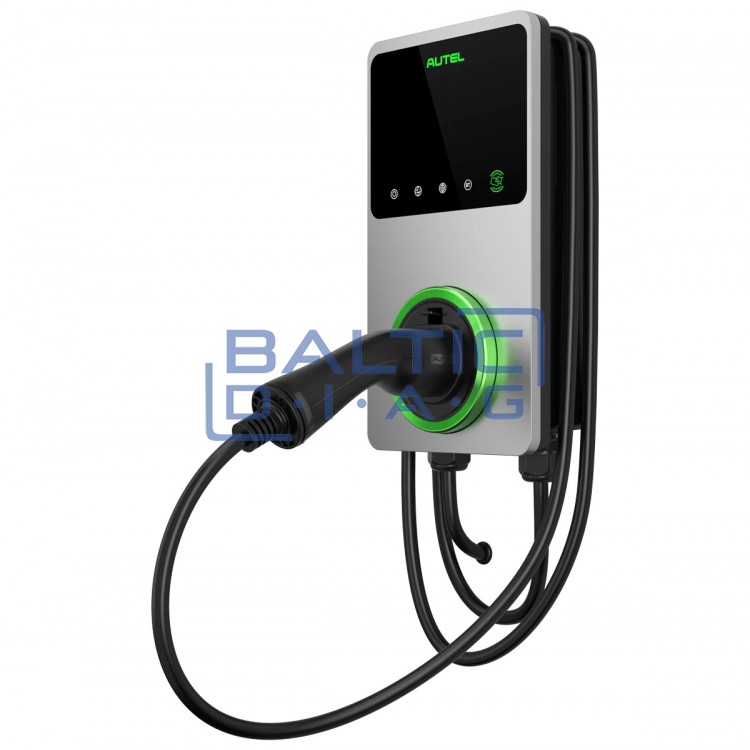

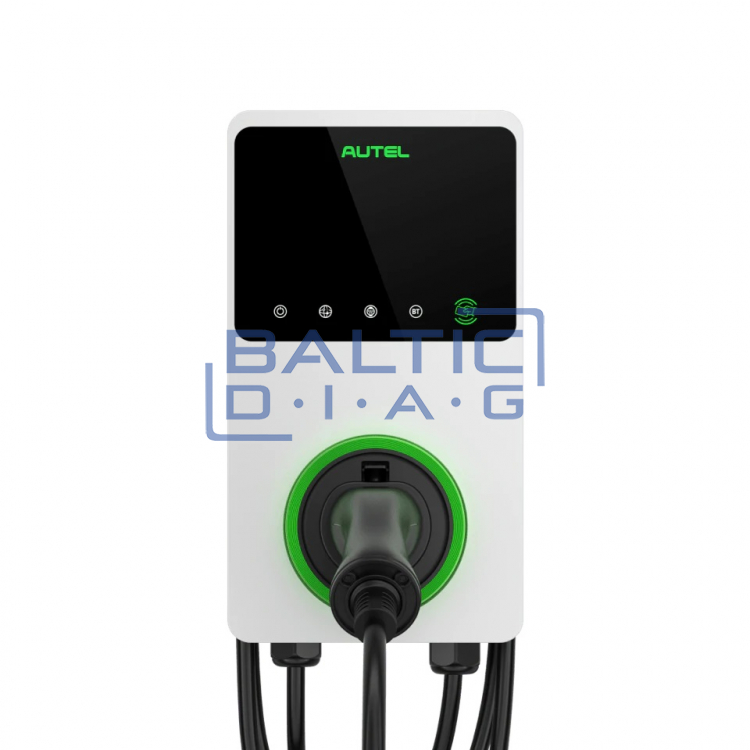

Charging station Autel MaxiCharger AC Wallbox 22kW, 32A, Type 2, 3-phase, 4G

Charging station Autel MaxiCharger AC Wallbox 22kW, 32A, Type 2, 3-phase, 4G

Manufacturer Autel (Italy), warranty 3 years

The latest Autel MaxiCharger AC Wallbox models specifically designed for both business and personal use. The EV Charger can be operated with a special mobile application - simple, intuitive and convenient. For everyday use Mode-3 with built-in Type-2 charging cables.

Applicability: for residential houses, corporate parking areas, car repair shops, supermarket sites

Highest safety - the world's first triple protection technology, safe charging

High reliability - IP65 protection, suitable for all weather conditions

Durability - intelligent battery diagnostic technology, longer battery life

Extreme convenience - easy to install and maintain

Advanced battery diagnostic technology

Includes all charging standards

Built-in overload safety

IP65 protection against water and dust

Remote software update and troubleshooting

Compatible with every electric vehicle

Weather resistant, perfect for outdoor use

Connect to the MaxiCharge Mobile App, monitor, manage and optimize your EV Charger anywhere, anytime

Technical data:

Charging mode: Mode 3, Type 2

Power: 22 kW

Current: 32 A

Frequency: 50 Hz

Voltage: 400V ± 15%

Network type: TT, TN

RCD: AC 30mA, DC 6mA

RCBO: External Type A RCBO

Protection: overcurrent, overvoltage, voltage drop, voltage surge

Cable length: 5 m / 7.5 m (optional)

IP and IK classification: housing IP65, base IP54; IK08

Max. working height: 2000 m

Operating temperature: -40 ° C ~ +55 ° C

Storage temperatures: -40 ° C ~ +85 ° C

Mounting: on the wall or on the floor with a stand

Weight: 3600 kg

Dimensions: 336 × 187 × 85 mm

Status indication: LED / APP / LCD (next EV station)

User Interface: Autel Charger APP

Connections: Bluetooth, Wi-Fi, Ethernet

Communication protocols: OCPP 1.6J

User authentication: program, RFID card, QR code

Safety standards: IEC / EN 61851-1, EN 62311, EN 62479, IEC / EN 62955

Certificates: CE, TUV

Warranty: 3 years
