-8 %

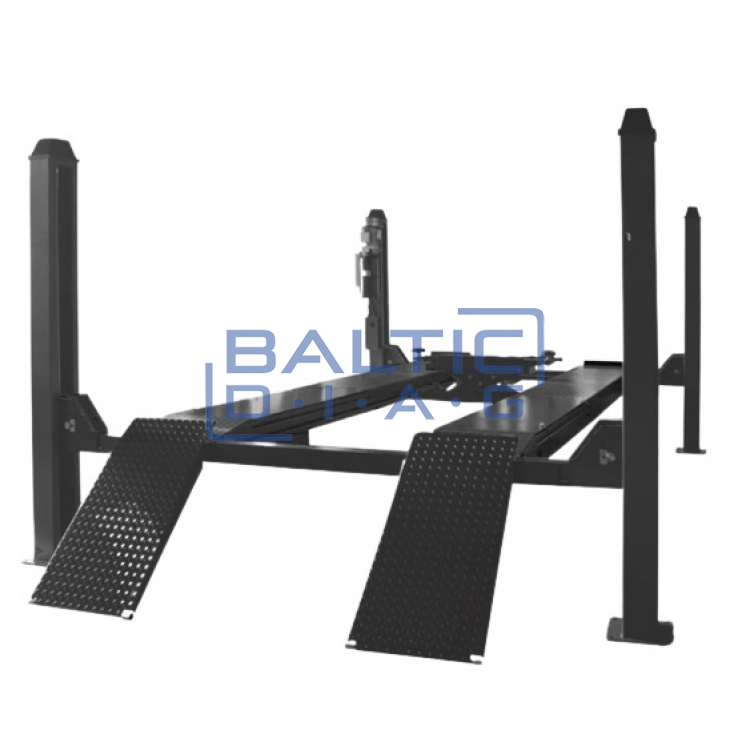

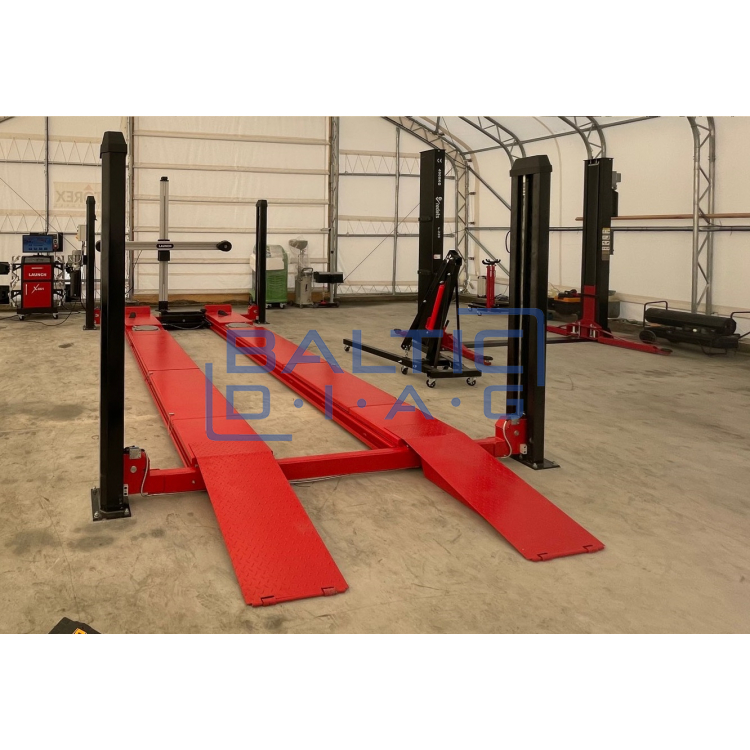

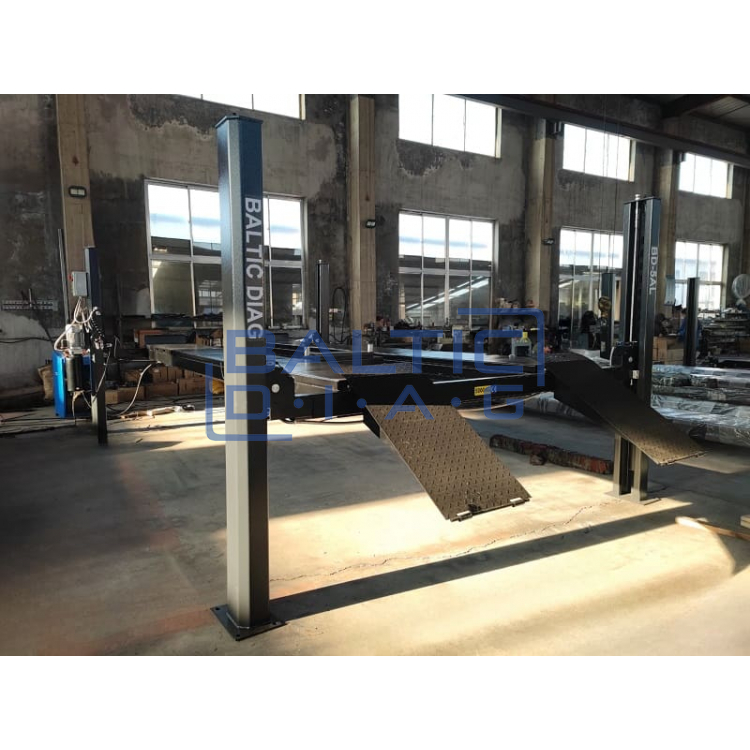

Four post lift wheel alignment ready 5 ton BD-5AL
- SKU: BD38540
3,993.00 €
4,356.00 €
Send Message
Description
Four post lift wheel alignment ready 5 ton BD-5AL
Description:
- Mechanical locking mechanism

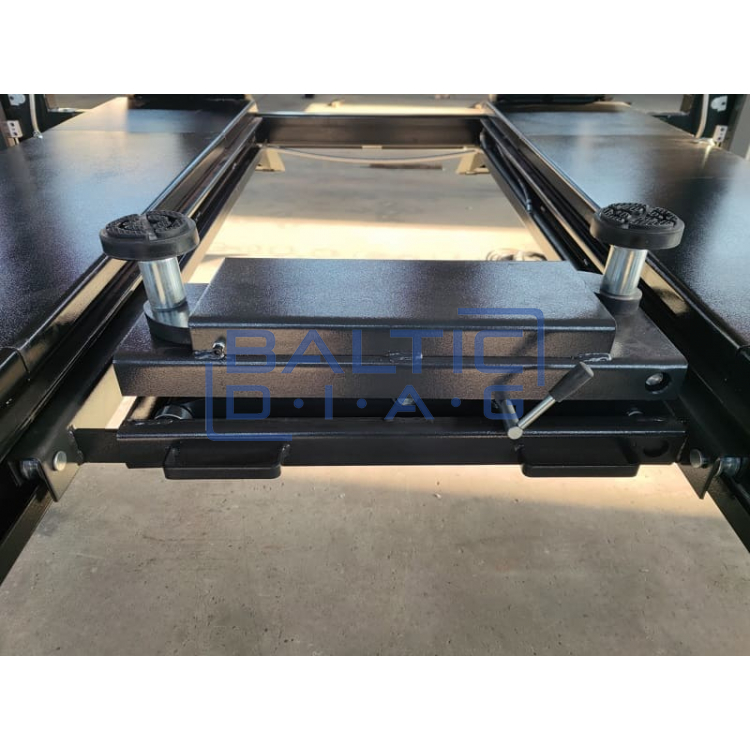

- Supplied with 2.5 tonne electro-hydraulic axle jack
- Robust steel construction for stable truck
- Integrated rear sliding panels and cutouts for front plates
- The cross sections are made with easy access and retrieval, thus facilitating the maintenance process

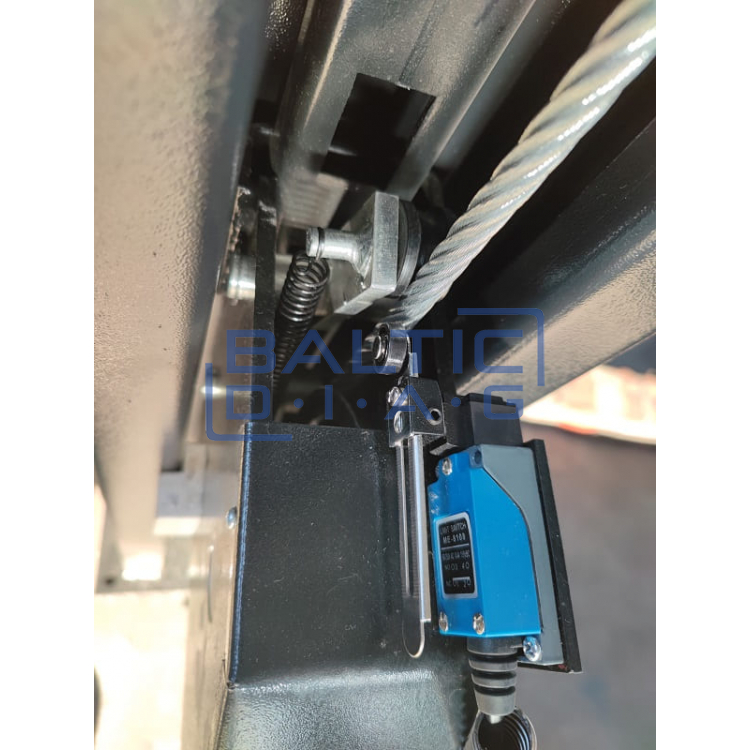

- Cable with emergency locking in case of breakage
- Aluminum engine construction provides good thermal dissipation and long service life
Technical parameters:
- Lifting capacity: 5000 kg
- Lifting height: 1800 mm
- Minimum height: 240 mm
- Lifting time: 40 - 50s
- Power supply: 400V / three-phase / 50Hz
- Engine power: 2.2 kW
- Overall length: 6235 mm (with ramps)
- Overall width: 3363 mm
- Platform length: 5000 mm
- Platform width: 550 mm
- Distance between platforms: 880 - 1200 mm
- Weight: 1600 kg
Accessories:
- Access ramps
- Sliding panels
- Axle jack
- Lifting pads (for axle jack)
- Mounting anchors
