Powder coating booth Pavalex 7000x3500x3000 mm

Powder coating booth Pavalex 7000x3500x3000 mm

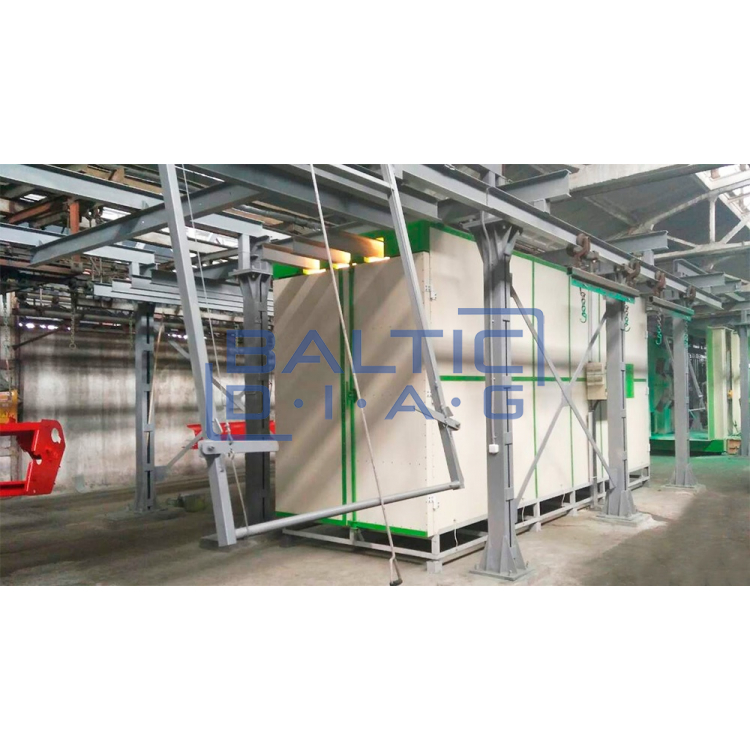

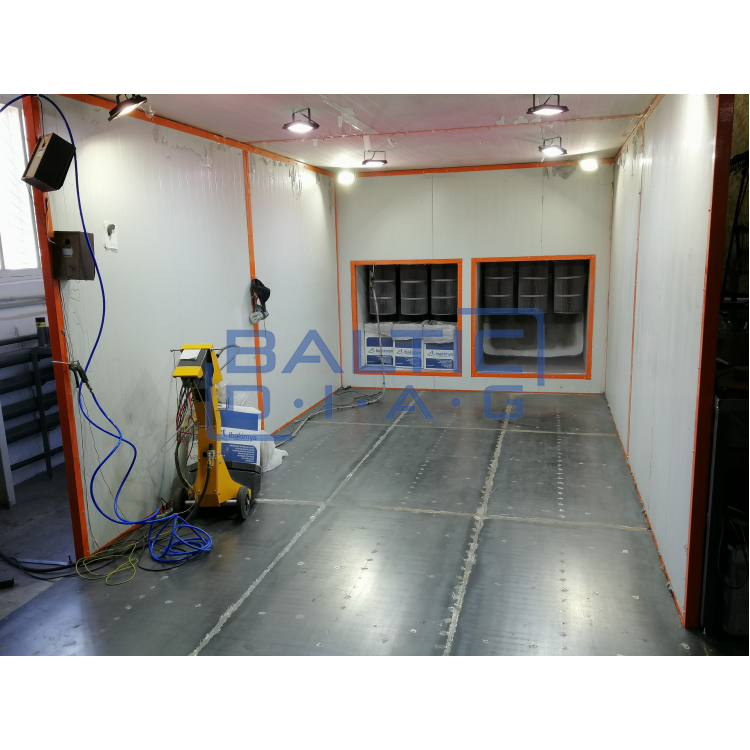

The powder coating booth is an open type and has two exhaust ventilation devices behind the rear wall of the booth. Dirty air is removed through six cassette filters installed inside the exhaust vent of the air handling unit. The cab has lighting in the upper corners and walls (LED lamps, ATEX certified).

About the cab:

Cab type - quick assembly

Internal dimensions (length x width x height), mm - 7000 x 3500 x 3000

External dimensions (length x width x height), mm - 8000 x 3600 x 3500

Housing - Steel profiles

Walls and ceilings - Sandwich panels (PIR, thickness 50 mm)

About lighting:

Type of light elements - LED (ATEX standard, II3G Ex nA

IIC T5 Gc)

Electricity (each device) - 100 W, 24V DC

Quantity - 10

LED lamps (Ex) mounted at an angle to the panels between the side wall and the ceiling and inside the wall.

About the ventilation system:

The ventilation system consists of two exhaust units located behind the rear cab wall.

Ventilation ensures the required air flow and high-quality dust removal in the cabin work area.

Exhaust unit:

Quantity - 2

Maximum air flow (each exhaust device) - 14000 m3 / h

Air flow (operating point at static pressure 700 Pa) - 7500 m3 / h

Number of fans - 1

Fan type - ATEX zone II 3Gc T4 2G

Static pressure - 800 Pa

Electric motor - IE3

Power - 3.0 kW

Power supply - 400V / 50 Hz

Noise level <75 dB

The total air flow of the ventilation system is 14000 - 16000 m3 / h

Total power - 2 x 3.0 kW

Air flow speed - 0.38 - 0.42 m / sec

Noise level <75 dB

Filter system:

The number of cartridge filters in each exhaust unit is 4

Filtering material - Antistatic aluminum oxidised polyester

Filter surface - 4 x 20 m2

Filter cleaning system - Pulsed cleaning with compressed air with economizer

Dust emission level - Less than 3 mg / m3

Control box:

Type - Manual and automatic control

Control type - PLC (Siemens)

Output - LCD touch screen

Working temperature - + 5 - 25 ° С

Total installed power - 7.0 kW
