Professional diagnostic equipment Autel MaxiSys MS919

Professional diagnostic equipment Autel MaxiSys MS919

Manufacturer AUTEL, warranty - 2 years

Renewals - 24 months. free updates

Why you should buy AUTEL equipment from us:

• We are the ONLY official representatives of AUTEL diagnostics in Lithuania.
• Only the ORIGINAL devices we sell have Russian and English languages at the same time.
• Only original diagnostic equipment sold by us has the most extensive DATA BASE
• Only the SOFTWARE of the original diagnostic devices we sell is adapted for the European region.
• Our customers receive full WARRANTY and POST-GUARANTEE service of the highest level.
• In case of device failure, our customers are PROVIDED with replacement devices if the repair takes longer than expected.
• The FASTEST delivery of original AUTEL diagnostic devices in Lithuania, we store MORE THAN 95% of the goods in Lithuania.
• Before buying, WE LET you TRY the original AUTEL device.

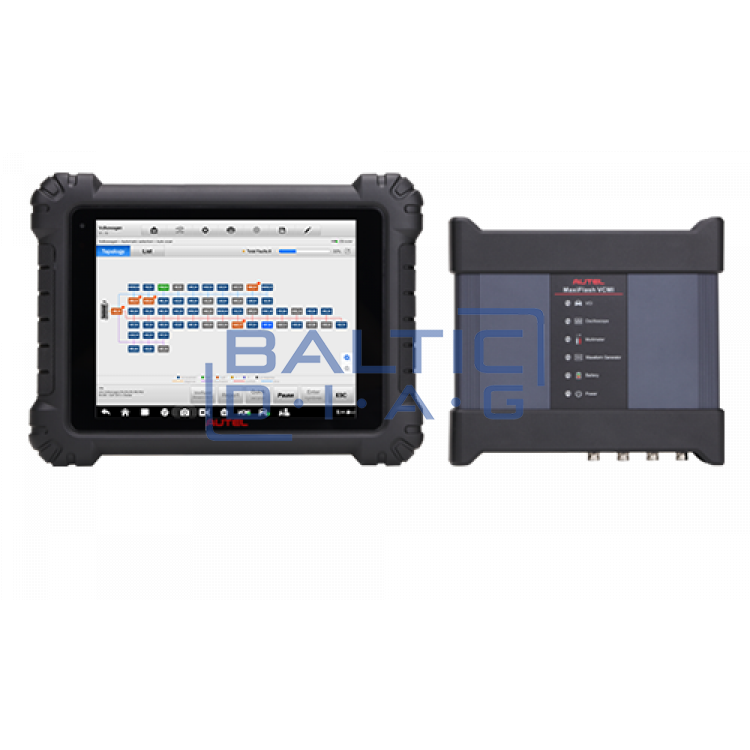

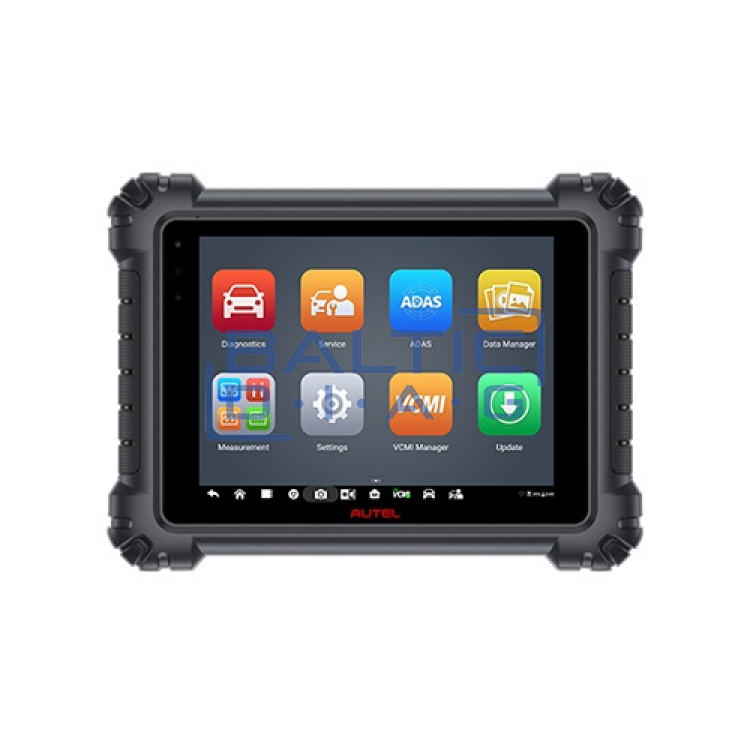

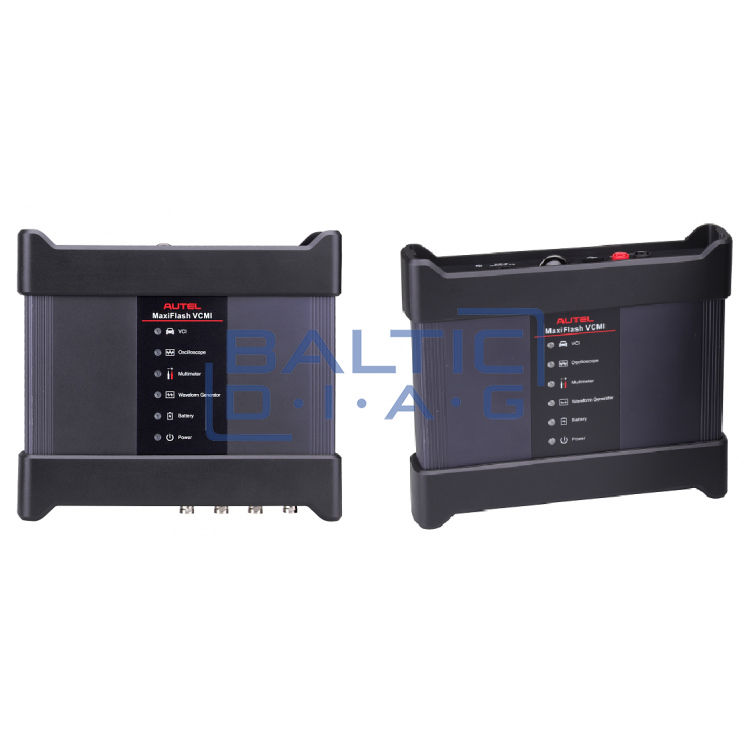

It is one of the latest devices in the Autel MaxiSys line with a 10-inch touchscreen tablet and the latest Android 7.0 OS, which runs on an ultra-high-end Octa-Core processor (2.3GHz Quad+ 1.7GHz Quad). This diagnostic tool has an internal memory of up to 128 GB. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter and CAN BUS tester. The Autel MaxiSys MS919 diagnostic tool provides a large library of pre-set controlled tests and a large library of waveforms to ensure the auto electrician gets the most out of the oscilloscope. The MS919 software outpaces the competition by offering DTC and sensor-specific test options for more accurate testing, as well as probe and component location diagrams to help technicians perform tests with the correct connection.

Features of diagnostic equipment:

• This instrument series is so updated that Autel updates provide the latest OE-level coverage for over 80 US domestic, Asian and European vehicles, including even supercars.
• Exclusive OE-level functionality from comprehensive OBDII diagnostics and services to advanced ECU coding and programming.
• Automatic system and software updates with real-time notifications via internet connection.
• Interactive data logging sessions allow you to contact Autel support directly to troubleshoot diagnostic errors and other issues the first time.
• A one-stop-shop for the ideal management of auto repair shop and auto electrician operations so that all data files, customer information and vehicle records can be managed and worked on conveniently.
• All customer car data is stored in the cloud, including vehicle records, scanner data and technician notes.
• Video library for troubleshooting and direct links to fix problems.
• ADAS calibration software available (optional).

Technical characteristics:

• Operating system; Android 7.0
• Processor: Samsung Exynos 8895V octa-core processor (2.3GHz quad-core Mongoose + 1.7GHz quad-core A53)
• Memory: 4 GB RAM and 128 GB internal memory
• Display: 9.7-inch TFT-LCD with 1536 x 2048 resolution and touch screen
• Communication interfaces: WiFix2 (802.11 a / b / g / n / ac 2x2 MIMO); BT v.2.1 + EDR; GPS; USB 2.0 (two type A USB HOST, one USB mini); HDMI 2.0; SD card (supports up to 256 GB)
• Rear camera: rear 16 megapixel, autofocus with flashlight
• Front camera: 5.0 megapixels
• Tablet sensors: gravity accelerometer, ambient light sensor (ALS)
• Audio Input/Output: Microphone, Dual Speakers, 3-Way 3.5mm Stereo/Standard Headphone Jack
• Power and Battery: 15000mAH 3.8V Li-Polymer battery, charged via 12V AC/DC power supply
• Input voltage: 12V / 3A adapter
• Operating temperature: from 0 to 50°C
• Storage temperature: from -20 to 60°C
• Body: Rubberized outer protection and solid inner body
• Dimensions: 304.4mm x 227.8mm x 42.5mm
• Weight: 1.66 kg
• Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16 , ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART echo byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD bus), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class 2)

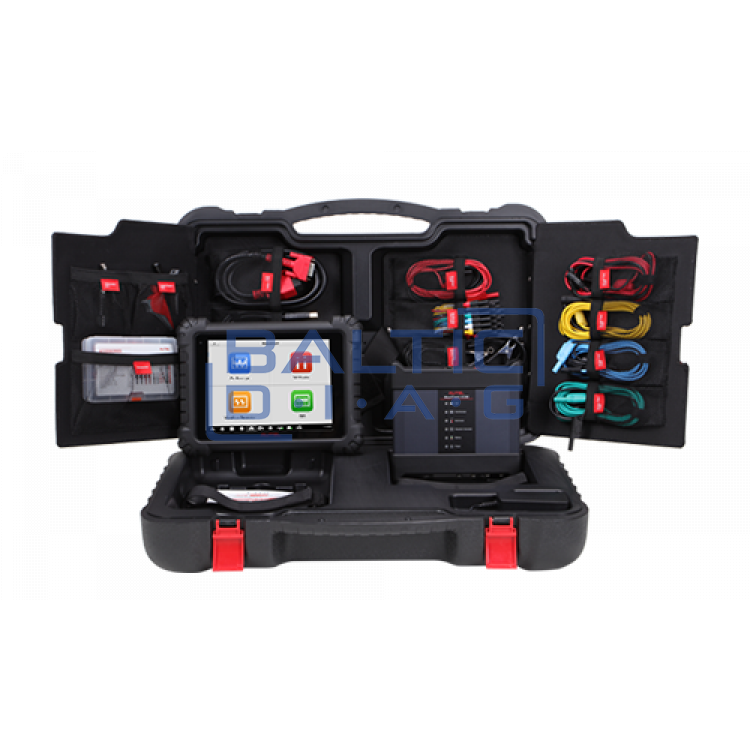

Complete set:

• Tablet PCs
• MaxiFlash VCMI
• Basic OBDII Cable V2.0
• USB 2.0 Cable V2
• AC/DC adapter 12V
• Car charging cable
• 2 pcs. fuses 6x30 mm
• 4 pcs. oscilloscope test leads
• 2 pcs. multimeter test leads
• 2 pcs. secondary ignition wires
• 2 pcs. suppressors 20:1
• 4x6 pcs. probes
• 1x2 pcs. multimeter probes
• 2x2 pcs. flexible probes with connections
• 1x5 pcs. reverse mounting probes (red/green/blue/yellow/black)
• 2 pcs. screw-on reverse probe mounts
• 20 pcs. flexible needles
• 2x2 pcs. small terminals
• 1x2 pcs. large terminals
• User Guide
• Complete list
• Tablet screen cleaning cloth
• Tool Boxes
• Suitcase
