Push rivet gun GYSPRESS 10T

Push rivet gun GYSPRESS 10T

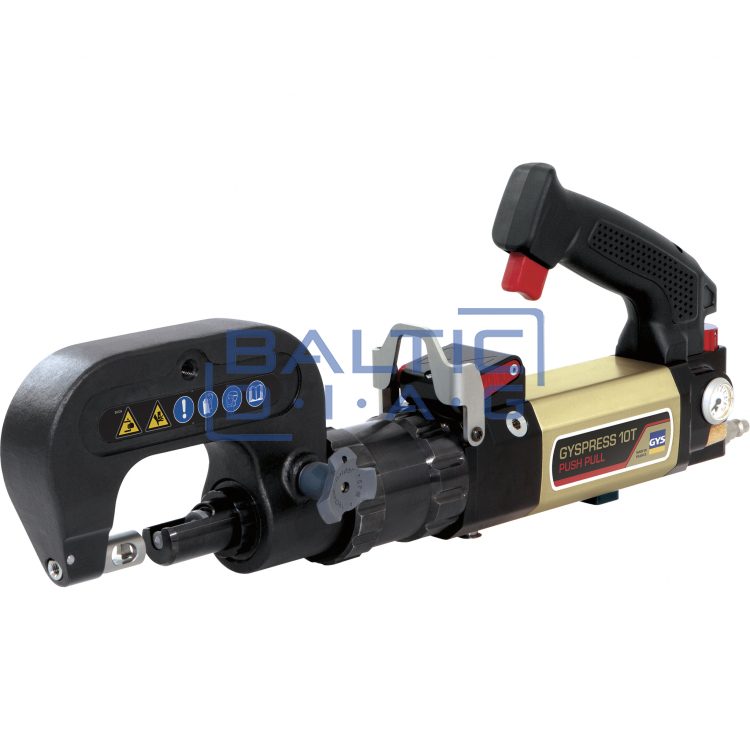

The GYSPRESS 10T push rivet gun is a pneumatic-hydraulic tool specially designed for rivets used in car repairs, such as self-piercing rivets, flow rivets or rigid rivets. The push-pull system makes it easy to pull stamping dies from thick aluminum or steel sheets, saving valuable time.

Exact settings

The pressure, as well as the stamping speed, can be precisely adjusted so that the rivets can be fitted without any distortion of the sheets.

Ergonomic and efficient

Maximum pressure 10 tons with integrated manometer. Quick and easy hand change. The C-shaped lever rotates 360 ° around the axis of the riveting machine. Choice of possible hands for complex access situations. Easy to use ergonomic handle and trigger. The magnetic stamp facilitates the placement of the rivets.

Push-Pull system:

This innovation facilitates the extraction of stamping dies thanks to the removal and pulling action.

Comes with:

2 stamping keys

1 strap

1 hand hr110

1 handle for hand

1 box of rivets 1 standard set of dies for rivet positioning and extraction + centering dies:

Stud rivets (ø 3.3 and 5.3 mm)

Flow-shaped rivets ø 6 mm
