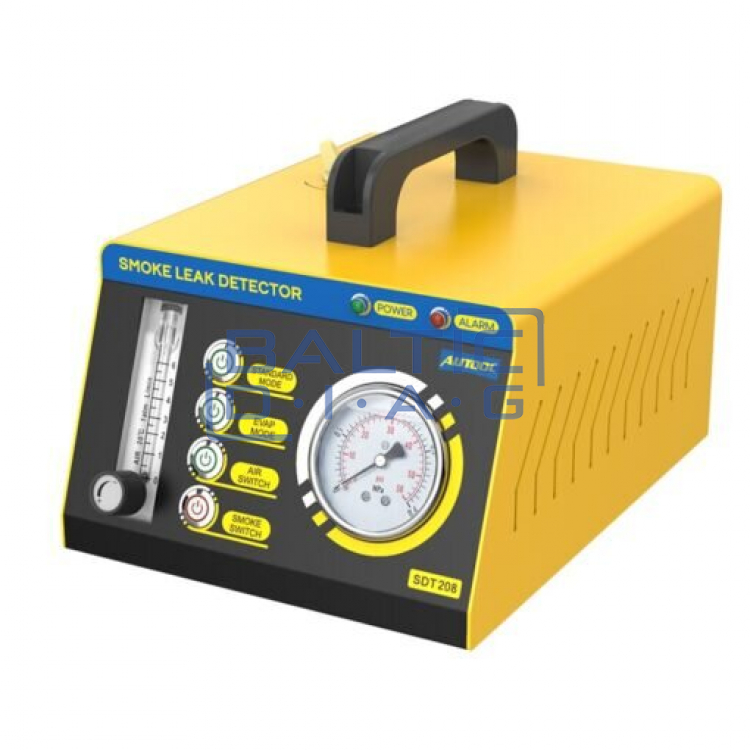

Smoke generator Autool SDT208

Smoke generator Autool SDT208

Manufacturer: Autool

Autool SDT208 is a professional equipment that allows you to identify various car malfunctions and leaks in their systems. The device will allow you to accurately and quickly determine the location of the problem in such systems as: intake, exhaust, fuel and vapor recirculation systems, cooling, turbine systems, engine tightness, etc.

Performing a leak test:

1. Add 20 ml of special liquid to the device.
2. Connect the device's smoke blowing nozzle to the system under test.
3. Connect the smoke generator to a 12 V power source, turn on the start button.
4. After about 30 seconds the system will be filled with smoke. At that time, try to look for leaky places through which smoke rushes.

Advantages of the smoke generator Autool SDT208:

• Professional equipment that meets the technical requirements for EVAP system testing in car service centers. The SDT208 can detect leaks as small as 0.5 mm. And when the device is in EVAP mode, it tests the system at a safe pressure to ensure no system components are damaged.
• Unique design as it is equipped with two pressure control modules, standard and EVAP modes. Thus, the device has two separate air and smoke flow control valves, which provides a wide range of adaptability. Special three manometers convey the parameters of oil quantity, air flow and air pressure.
• Wide applicability as the device supports 12 V and 24 V voltages. This allows you to test the tightness of various systems not only for cars, motorcycles, but also for trucks, etc.
• It is safe to work with the SDT208 as it is equipped with temperature and pressure protections. If the device temperature exceeds 75 °C during operation, then the device is automatically disconnected from the power supply and the device is turned off. Also, if the air pressure generated during operation exceeds the set limits (30 psi, in Standard mode and 10 psi, in EVAP mode), the unit's compressor is turned off. In this way, the system of the device is protected.
• 3 year warranty

Components that make up the device:

• Air flow pressure gauge
• Air flow control valve
• Function buttons
• Pressure gauge
• Power indicator
• Error warning indicator
• Handle
• Oil tank cap
• Oil level manometer
• Power button
• Feeding
• Power supply connector
• Smoke outlet connection
• Oil outlet connection

Technical parameters:

• Outlet pressure: < 10 psi / 35 psi
• Output flow: 15 l/min
• Air outlet: integrated small compressor
• Power supply: 12 V / 24 V - DC
• Device dimensions: 280 x 210 x 180 mm
• Device weight: 6.55 kg
• Package dimensions: 350 x 250 x 300 mm

The set includes:

• 1 x smoke generator Autool SDT208
• 1 x rubber connection adapters
• 1 x hard Rubber Connection Adapters (with stock specs)
• 1 x soft Rubber Connection Adapters (with stock specs)
• 1 x standard taper adapter
• 1 x universal Inflatable Seal Pump
• 1 x power cords
• 1 x special valve key
• 1 x test Oil Filling Bottle
• 1 x special EVAP system adapter
• 1 x smoke Hose
• 1 x user manual
