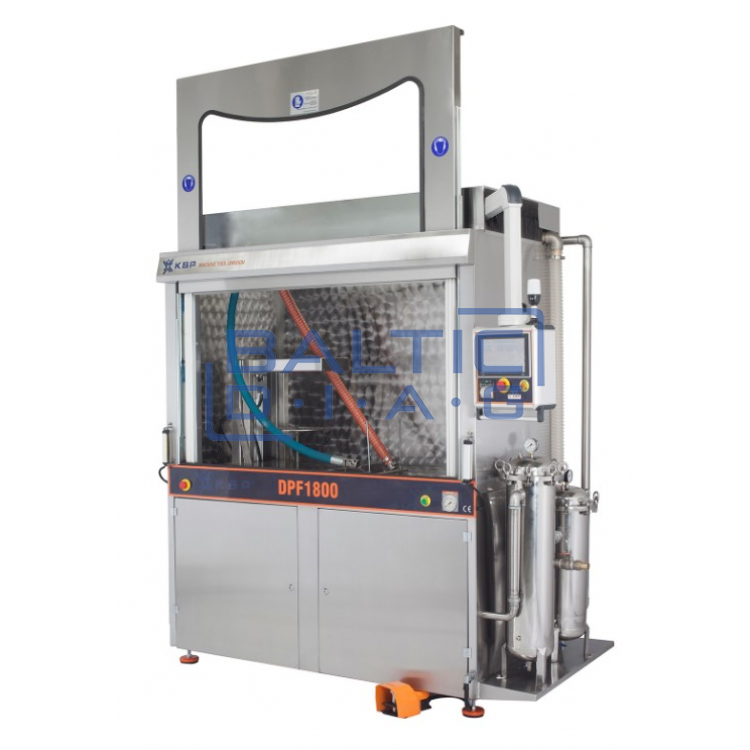

Universal DPF filter cleaning equipment KSP Machine DPF1800 Pro

Universal DPF filter washing equipment KSP Machine DPF1800 Front Door

KSP Machine, Turkey

DPF1800 is a diesel particulate filter (DPF) washer. With this equipment, you can wash the filters easily and efficiently. An information sheet printed after the operation will let you know how dirty the filter was and whether it was washed well. This DPF filter washing equipment has three different configurations, which depend on the integration of technical components.

• English, Turkish, German and Russian languages
• IP67 protection class interior lighting
• Pre/post wash reports
• Electrical panel labeled and explained
• Safety devices and warning signals
• Pneumatic door locking system
• Stainless steel filters
• Washing is carried out with the help of washing liquid. The washing liquid is ordered separately, the price depends on the quantity.
• The washing liquid is diluted 1:10 (1:20 is also possible, but the quality of the washing is affected). With a 240L tank and diluting the washing liquid in a ratio of 1:10, a full tank requires 24L of washing liquid. When diluting 1:20, only 12L of washing liquid is needed.
• With a full water tank, about 100 - 150 DPFs can be flushed (depending on DPF sizes and level of contamination).
• The equipment includes one water tank, two filters and pumps. After filling the tank with a mixture of water and washer fluid, it is recirculated and reused over and over again, so the fluid does not need to be changed after each wash. Both internal filters are made of stainless steel, so they will never need to be changed.

Technical parameters DSP1800-FRONT DOOR (price 23,950 EUR + VAT):

• Internal capacity: 1800 x 600 x 1000 mm
• Maximum load: 250 kg
• Power supply: 380-400V / 3 phases
• Interior lighting: L70 x IP67
• Energy consumption: 27 kW
• Min. required amount of air: 100L / 6 bar
• Protective curtain: none
• Safety relays: none
• Drying system: integrated
• Touch screen: 10"
• External dimensions: 2320 x 1270 x 2550 mm

Technical parameters DSP1800-PRO (price 24,600 EUR + VAT):

• Internal capacity: 1800 x 600 x 1000 mm
• Maximum load: 250 kg
• Power supply: 380-400V / 3 phases
• Interior lighting: L70 x IP67
• Energy consumption: 27 kW
• Min. required amount of air: 100L / 6 bar
• Protective curtain: on request
• Protective relays: on request
• Drying system: integrated
• Touch screen: 10"
• External dimensions: 2320 x 1270 x 2550 mm

Technical parameters DSP1800-PREMIUM (price 26,000 EUR + VAT):

• Internal capacity: 1800 x 600 x 1000 mm
• Maximum load: 250 kg
• Power supply: 380-400V / 3 phases
• Interior lighting: L70 x IP67
• Energy consumption: 27 kW
• Min. required amount of air: 100L / 6 bar
• Protective curtain: integrated
• Protective relays: integrated
• Drying system: integrated
• Touch screen: 10"
• External dimensions: 2320 x 1270 x 2550 mm

Complete set:

• Testing system
• Connection for commercial transport and trucks
• PLC controller
• Printer
• Touch screen
• Filter fasteners
• Water heater
• Emergency brake
• Pneumatic doors
• Stainless steel filters
