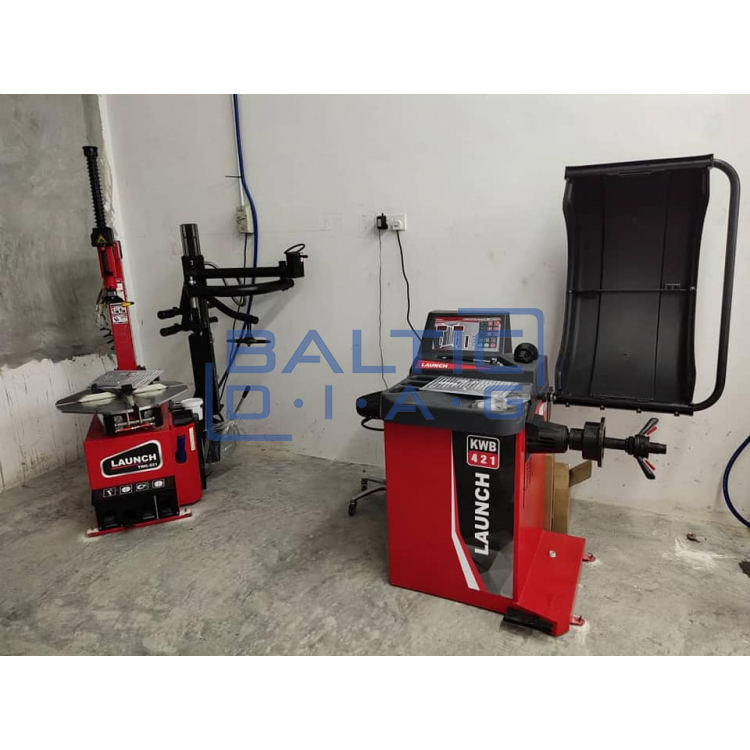

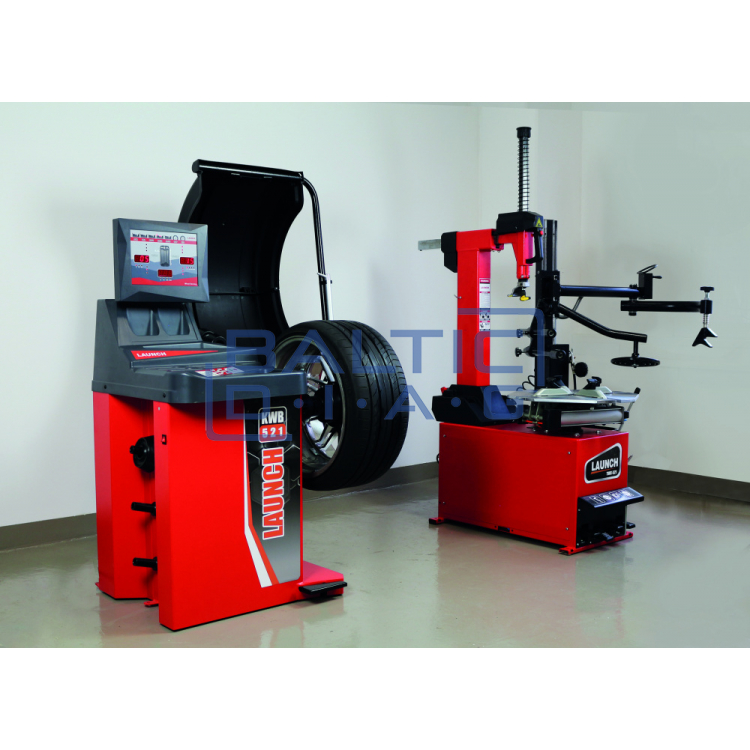

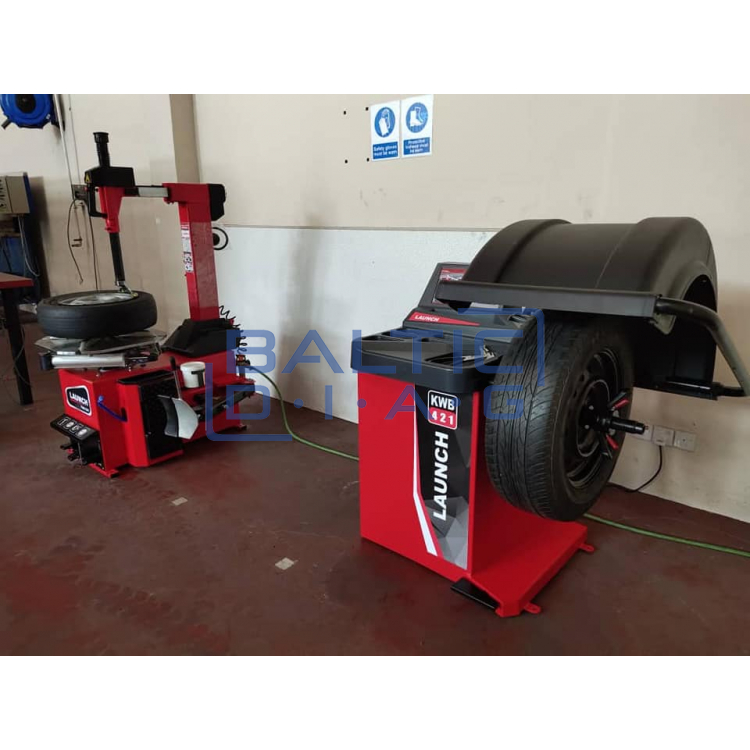

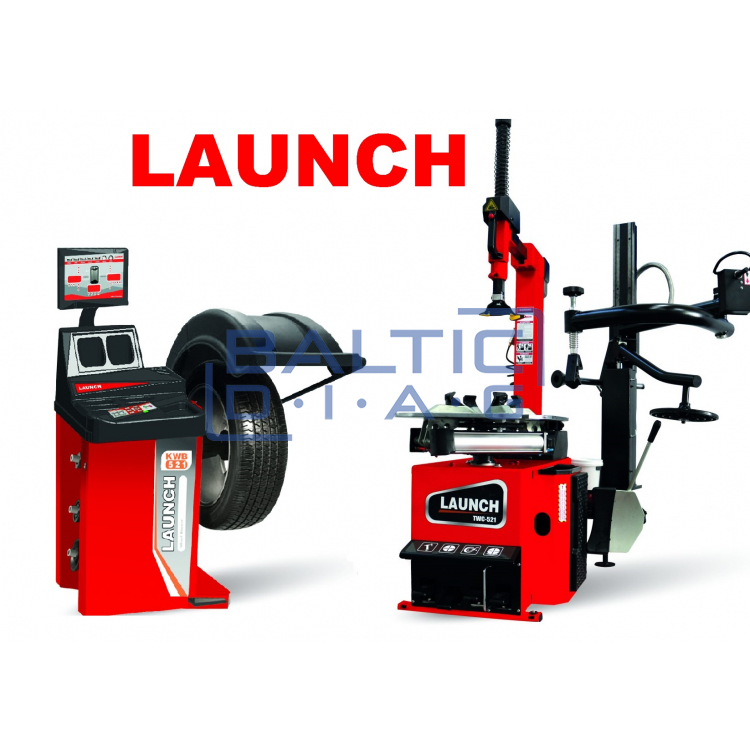

Assembly and balancing machine set Launch

Launch, Germany Warranty 2 years

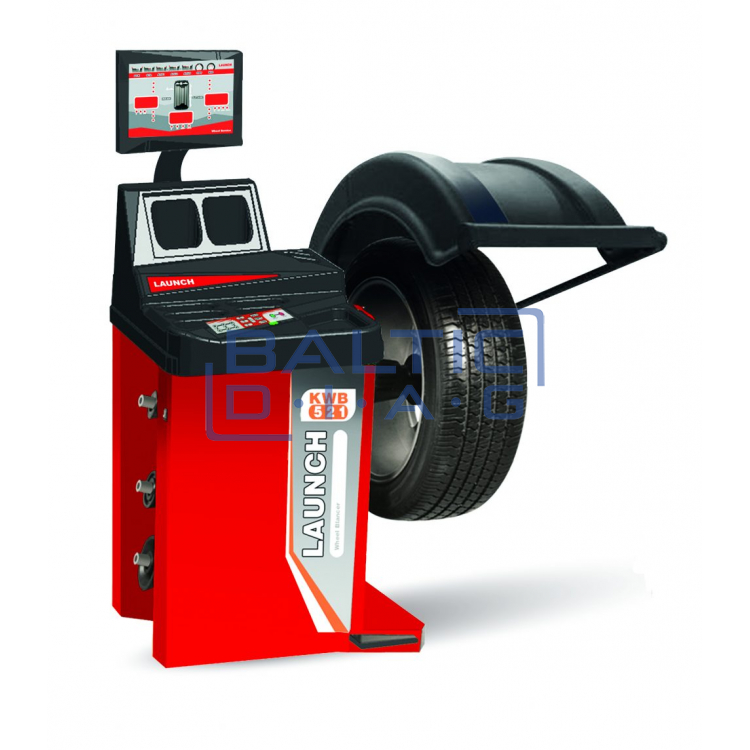

Balancing machine KWB-521:

These machines are high-precision, easy to operate and have a number of functions specifically for alloy wheels. Three parameters can be measured and the instrument will display the position of the weights at the same time.

Automated rim parameter reading.
High accuracy and sensitivity: +/- 1 gr.
Dynamic, static and aluminum applications.
Weight position indication using laser.
Automatic start / stop.
Electromagnetic brake.
Simple calibration process.
Supply voltage: 220 V.
Rim size range: 12-24 ”.
Maximum wheel diameter: 650 mm.
Rim width range: 1.5-22 ".
Measurement error: +/- 1.0 g.
Maximum rim weight: 75 kg.
Measurement time: 7 s.
Measuring speed: 180 rpm.
Engine power: 0.75 kW.

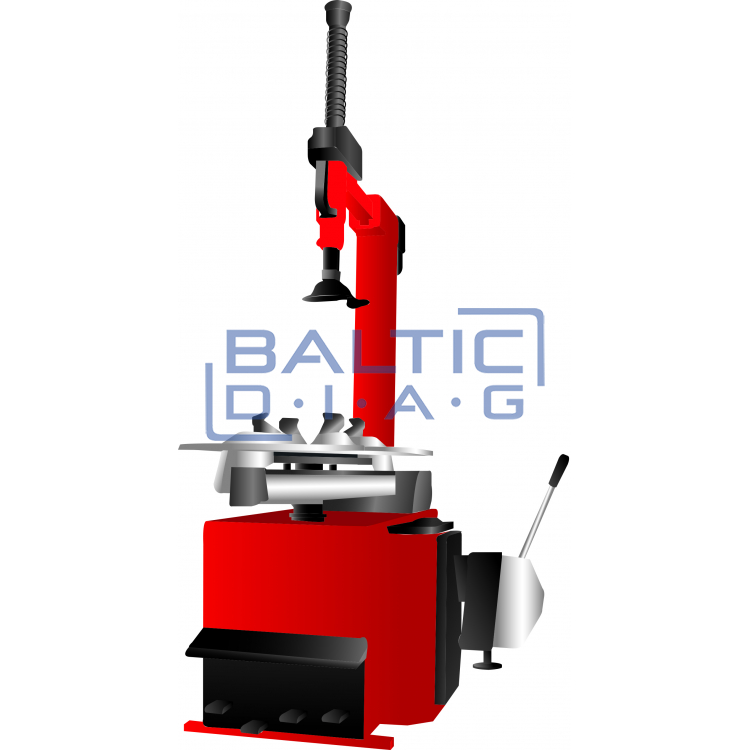

Tire changer TWC-521:

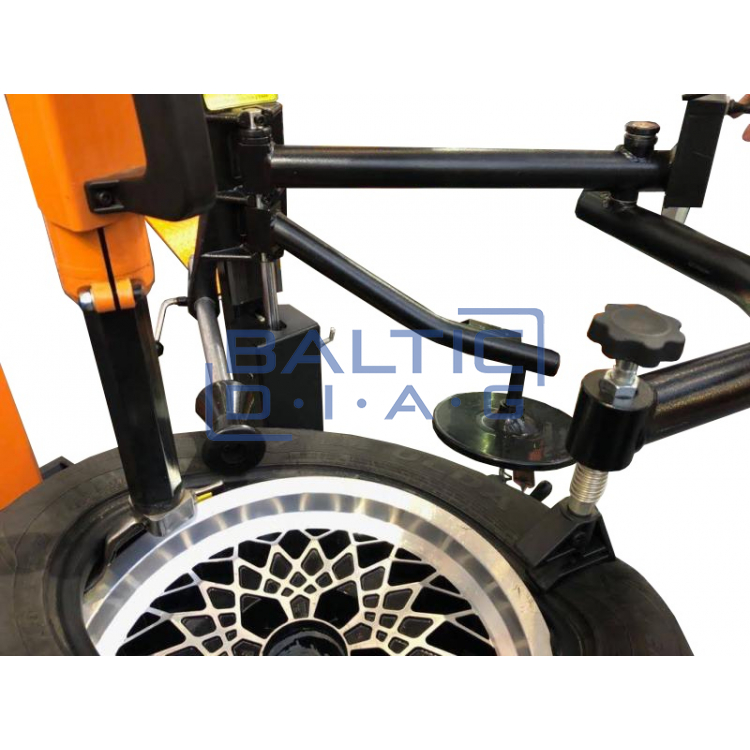

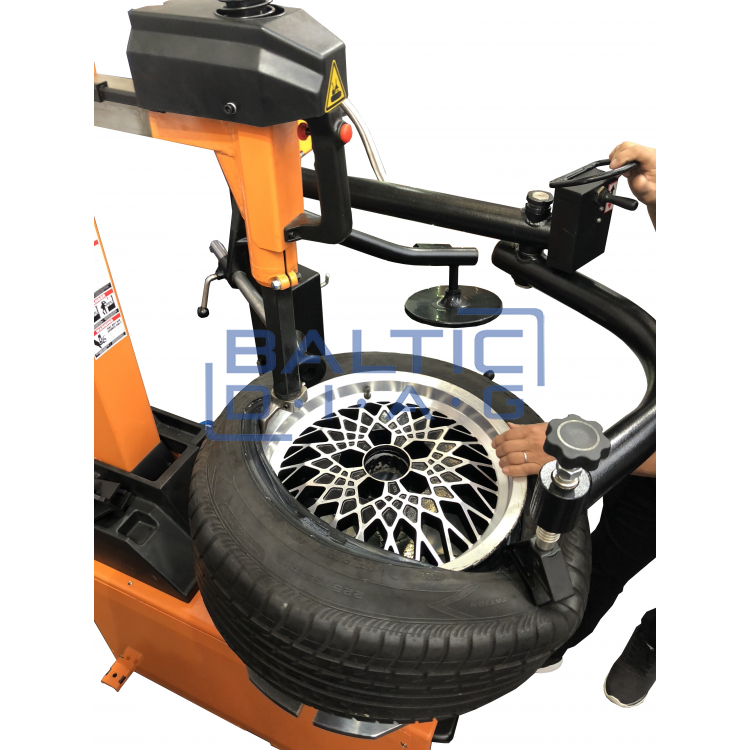

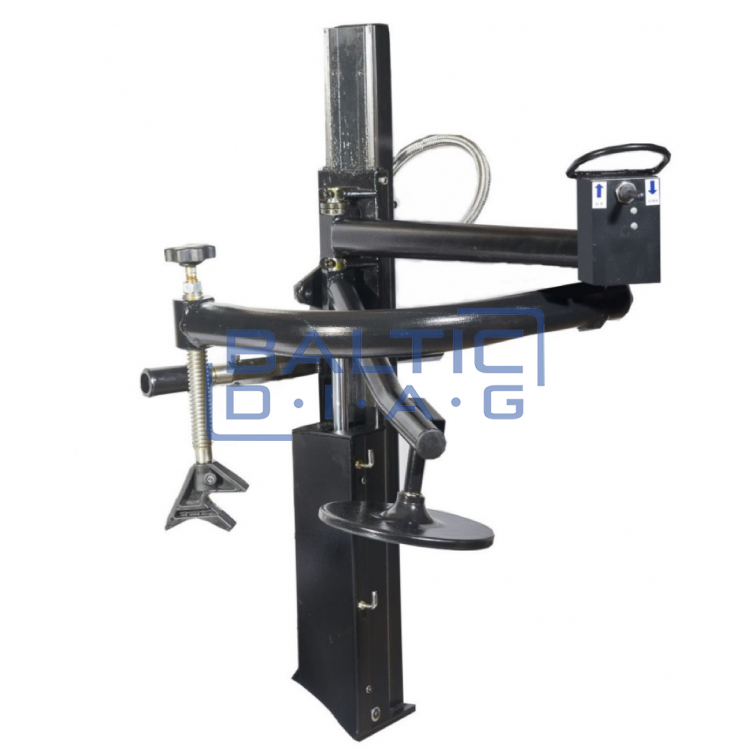

The TWC -521 is a rugged, easy-to-use machine with electrical and pneumatic components for longevity. The folding auxiliary mounting paw makes tire mounting much more convenient and easier.

Power supply: 380 V.
Working pressure: 0.8-1 MPa.
Internal compression range: 12 to 24 ”.
External compression range: 10-22 ”.
Wheel width: 4 to 13 ”.
Desk size: 9-24 ”.
Maximum wheel diameter: 1050 mm
Compression brake force: 2500 kg
Mounting speeds: 6-13 rpm.
Compressed air connection: 8-10 Bar.
Sound level: 70 dB (A).
Motorcycle wheel adapter (on request)
